Red Off-(On) Low Profile Round 12mm Momentary Push Button Switch 1.5A SPST

by Canal
SKU 550397

MPN: PB-01-PP-R

Availability:
514 in stock
Original price £0.78 - Original price £0.78
Original price
£0.78
£0.78 - £0.78
Current price £0.78

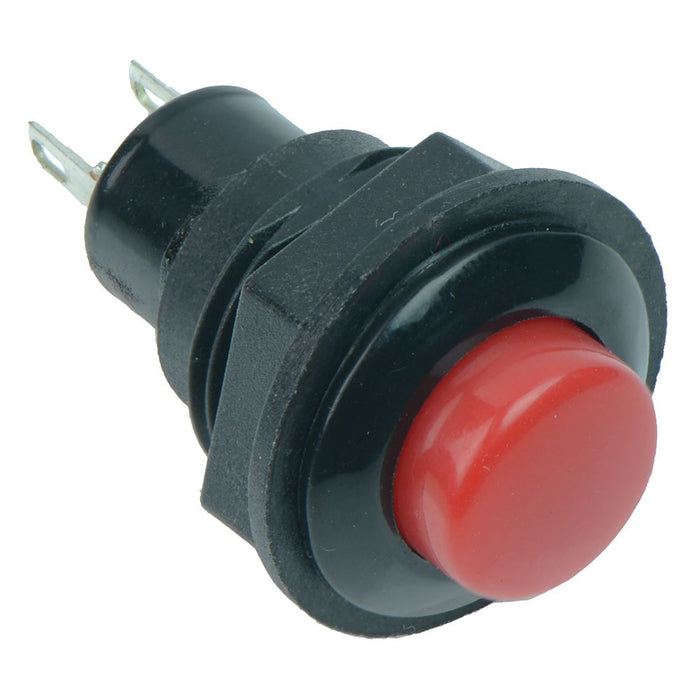

Round push button switch with a Off-(On) action making it suitable for a range of uses.

  • Colour: Red Button
  • Rating: 3A 125VAC, 1.5A 250VAC
  • Off-(On) momentary operation
  • Red Plastic Housing
  • 12.7mm Panel Cut Out
  • 8.6mm Button Diameter
  • Maximum panel thickness: 3mm
  • Solder Lug Terminals
  • SPST contacts
  • Specification
    Actuation Momentary
    Back Order Lead Time 45 Days
    Colour Red
    Contact Configuration SPST
    Contact Rating 3A 125VAC, 1.5A 250VAC
    Current Rating 3A @ 125VAC
    Electrical Life 10000 Cycles Min
    Illuminated No
    Illumination Colour Non Illuminated
    Material PA66
    Mounting Style Panel
    Number of Positions 2
    Operating Force 150gf
    Operating Temperature 0°C to +85°C
    Panel Cut Out 12.7mm
    Switch Operation Off-(On)
    Terminal Type Solder
    Voltage Rating 250VAC
