Red Off-On LED Push Pull Switch 10A 14VDC A3-30L-07
by SCI
SKU 491426
MPN: A3-30L-07
Availability:
11 in stock
Original price
£2.90
-
Original price
£2.90
Original price
£2.90
£3.05
£3.05
-
£3.05
Current price
£3.05

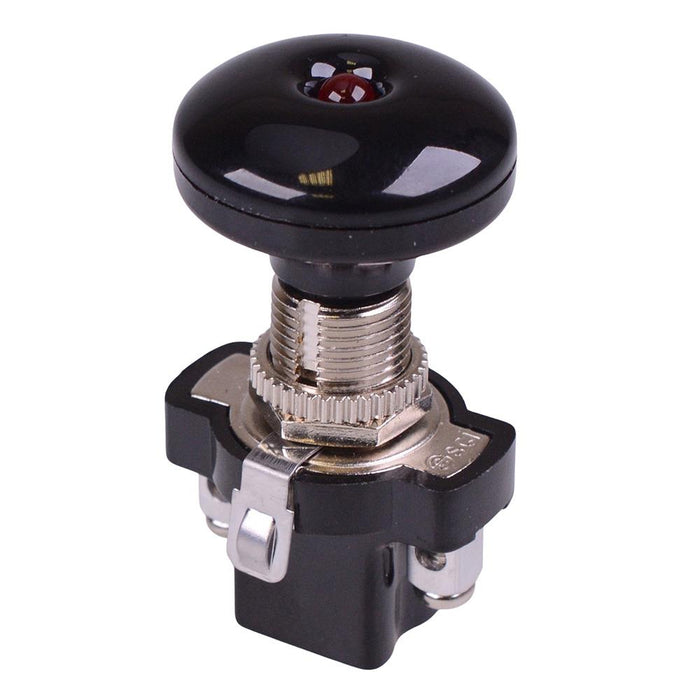

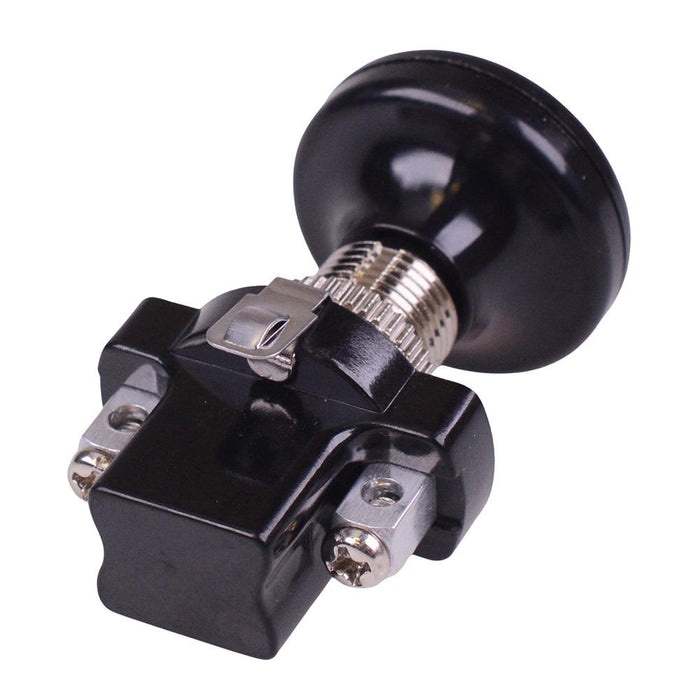

A3-30L-07 circular push-pull switch featuring a large actuator with red LED. The switch features screw terminals and requires a 12.2mm cut-out, suitable for automotive and other 12V applications.
RedLED illuminates when ON SPST contacts Off-On operation Screw terminals 12.2mm panel cut-out 6mm maximum panel thickness 10A 14VDC rating Dimensions: 52 x 28 x 29.9mm (height x length x width) SCI A3-30 series
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 Days |
| Colour | Red |
| Contact Configuration | SPST |
| Contact Rating | 10A 14VDC |
| Current Rating | 10A |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 12VDC |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Panel Cut Out | 12.2mm |
| Panel Thickness | 6mm Max |
| Switch Operation | Off-On |
| Terminal Type | Screw |
| Voltage Rating | 14VDC |
