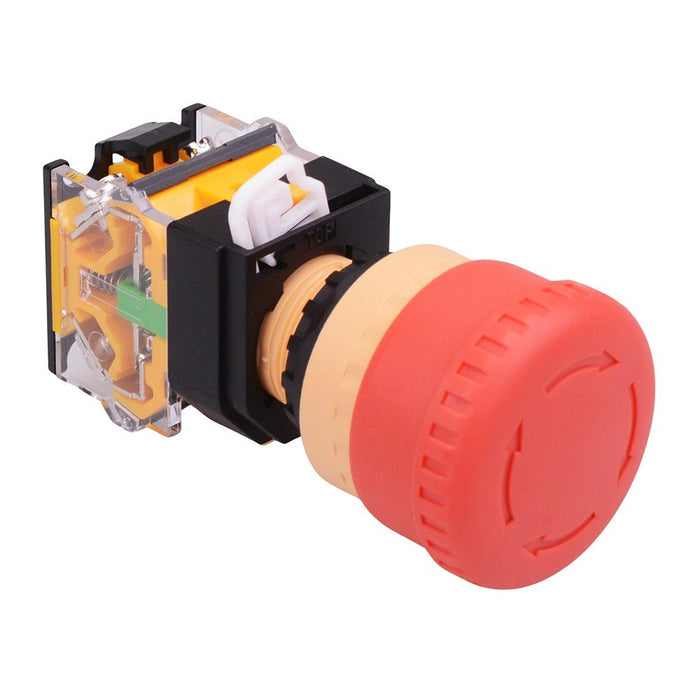

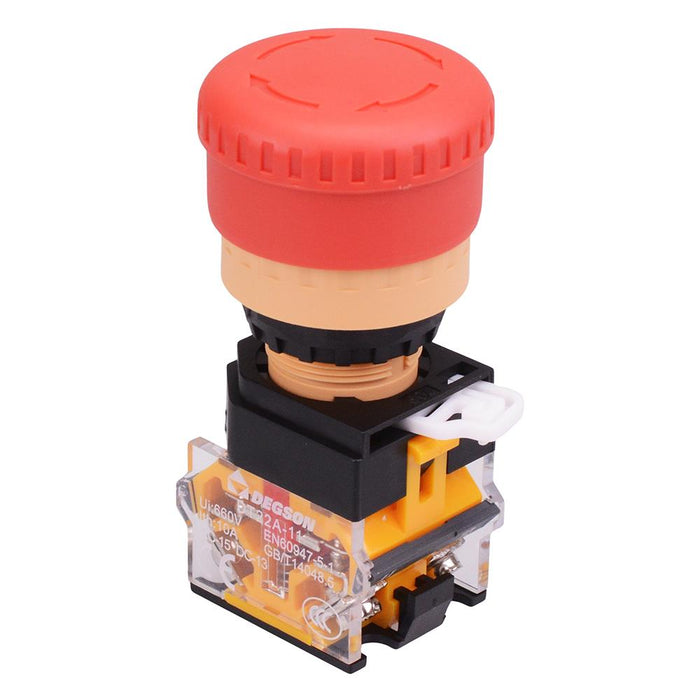

Red Mushroom 22mm Emergency Stop Switch NO/NC
by Degson
SKU 491934
MPN: DT22A-EP11/RD
Availability:
135 in stock
Original price
£4.46
-
Original price
£4.46
Original price
£4.46
£4.69
£4.69
-
£4.69
Current price
£4.69
Red industrial e-stop switch featuring NO and NC contacts, suitable for 22mm panel cut-outs. The switch features 10A current rating and quick release mechanism for releasing the head. The switch is suitable for a wide range of industrial applications.
Excellent vibration and impact resistance Screw terminals Panel cut-out: 22mm Rated insulation voltage: 660V Rated thermal current: 10A NO/NC contacts Head diameter: 40mm
Specification
| Actuation | Twist Release |
| Back Order Lead Time | 120 Days |
| Colour | Red |
| Contact Configuration | 1NO-1NC |
| Current Rating | 10A |
| Head Type | Mushroom |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +55°C |
| Panel Cut Out | 22mm |
| Terminal Type | Screw |
| Voltage Rating | 660V |
