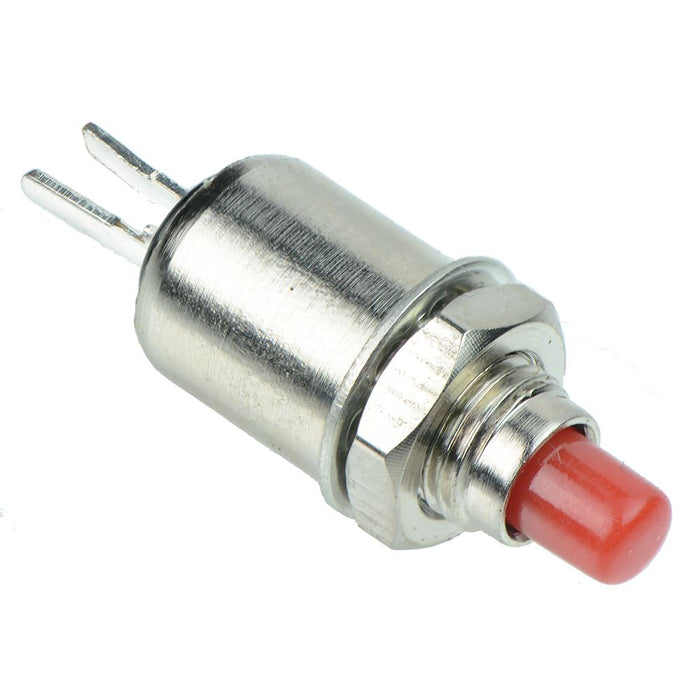

Red Microminiature 5mm Momentary Off-(On) Push Button SPST 0.5A

SKU 550126

MPN: 550126

122 in stock
Original price £0.44 - Original price £0.44
Original price
£0.44 Inc VAT
£0.44 - £0.44
Current price £0.44 Inc VAT
Microminiature push button switch suitable for low current applications where small dimensions are required.

  • Aluminium body housing with red button colour
  • 0.5A Current Rating
  • SPST Off-(On)
  • 5mm Panel Cut Out
  • Specification
    Actuation Momentary
    Back order lead time 40 Days
    Colour Red
    Contact configuration SPST
    Contact rating 0.5A 125VAC
    Current rating 0.5A
    Electrical life 10000 Cycles Min
    Illuminated No
    Illumination colour Non Illuminated
    Material Nickel Plated Brass
    Mounting style Panel
    Number of positions 2
    Operating temperature -25°C to +85°C
    Panel cut out 5mm
    Switch operation Off-(On)
    Terminal type Solder
    Voltage rating 125VAC
