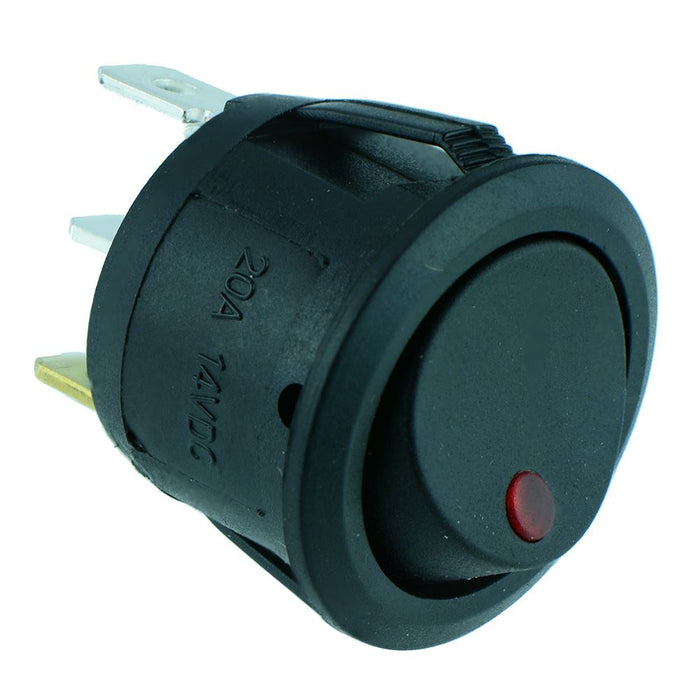

Red LED Round Rocker Switch SPST 12V 20A R13-112B2-02

by SCI
SKU 551697

MPN: R13-112B2-02 Red 12V

Out of stock
Sold out
Original price £1.63 - Original price £1.63
Original price
£1.63 Inc VAT
£1.63 - £1.63
Current price £1.63 Inc VAT
Circular rocker switch featuring SPST contacts and red illumination suitable for a wide range of applications including automotive.

  • SPST contacts
  • On-Off operation
  • Red LED illumination
  • 20.2mm panel cut-out
  • Snap-in mounting
  • 4.8mm quick connect terminals
  • Rating: 20A 14VDC
  • R13-112 series
  • Specification
    Actuation Latching
    Back order lead time 120 Days
    Colour Red
    Contact configuration SPST
    Contact rating 20A 14VDC
    Current rating 20A
    Illuminated Yes
    Illumination colour Red
    Illumination voltage 12VDC
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Operating temperature -25°C to +85°C
    Panel cut out 20.2mm
    Switch operation On-Off
    Terminal type Quick Connect
    Voltage rating 14VDC
