Red LED On-(On) Momentary 16mm Vandal Resistant Push Switch NO/NC

SKU 481769

MPN: 481769

74 in stock
Original price £6.32 - Original price £6.32
Original price
£6.32 Inc VAT
£6.32 - £6.32
Current price £6.32 Inc VAT

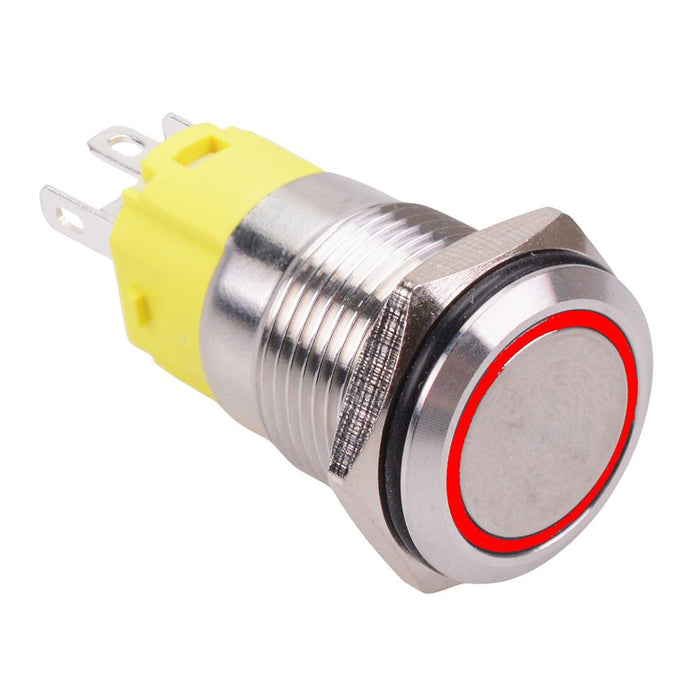

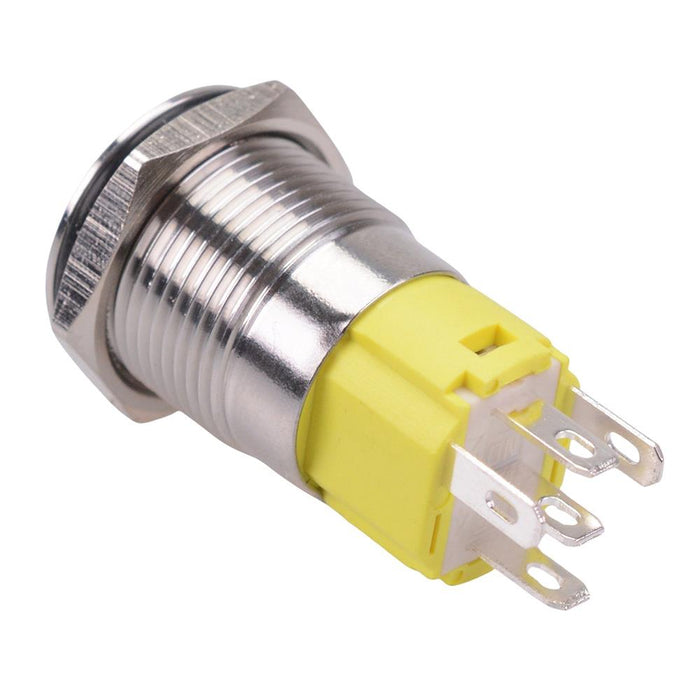

Vandal resistant push button switch manufactured from stainless steel, featuring a red LED and NO/NC contacts. The switch features IP65 protection and is suitable for 12V applications.

  • Momentary On-(On) action
  • Red LED
  • 12V illumination voltage
  • IP65 protection rating
  • 16mm panel cut-out diameter
  • NO/NC contacts
  • 2.8mm terminals
  • Rating: 3A 250VAC
  • Specification
    Actuation Momentary
    Back order lead time 30 Days
    Contact configuration SPDT
    Contact rating 3A 250VAC
    Current rating 3A
    Electrical life 50,000 Cycles
    Illuminated Yes
    Illumination colour Red
    Illumination voltage 12VDC
    Material Stainless Steel
    Mounting style Panel
    Number of positions 2
    Operating temperature -25°C to +85°C
    Panel cut out 16mm
    Protection level IP65
    Switch operation On-(On)
    Terminal type Quick Connect
    Voltage rating 250VAC
