Red LED On-On Latching 19mm Vandal Resistant Push Switch NO/NC
SKU 481775
MPN: 481775
Availability:
31 in stock
Original price
£7.14
-
Original price
£7.14
Original price
£7.14
Inc VAT
£7.14
-
£7.14
Current price
£7.14
Inc VAT

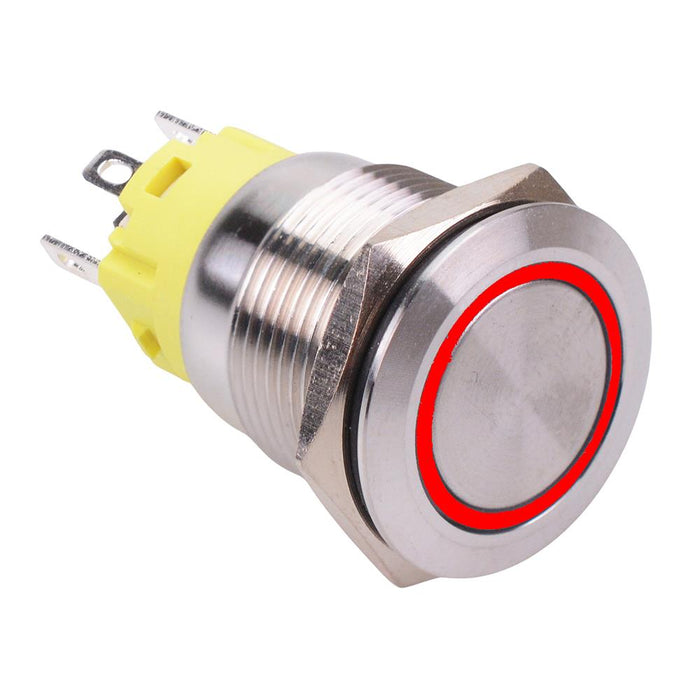

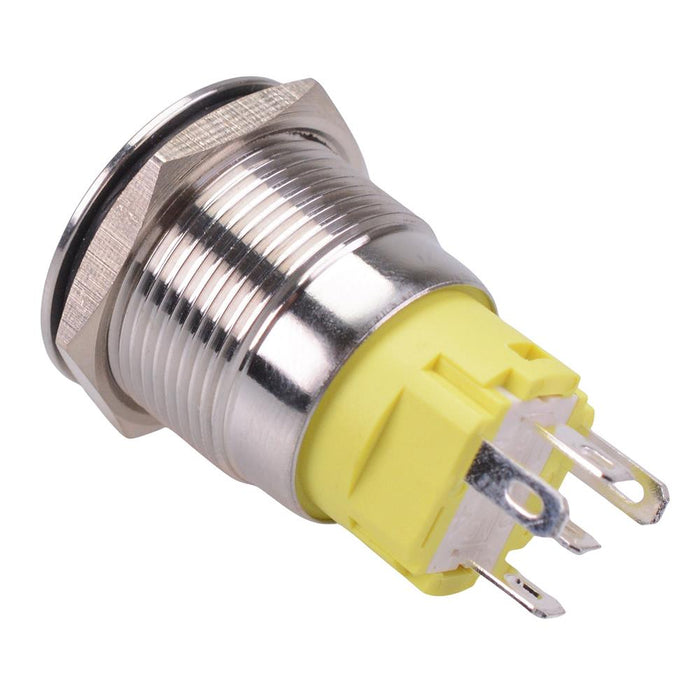

Vandal resistant push button switch manufactured from stainless steel, featuring a Red LED and NO/NC contacts. The switch features IP65 protection and is suitable for 12V applications.
Latching On-On action Red LED 12V illumination voltage IP65 protection rating 19mm panel cut-out diameter NO/NC contacts 2.8mm terminals Rating: 5A 250VAC
Specification
Actuation | Latching |
Back order lead time | 30 Days |
Contact configuration | SPDT |
Contact rating | 5A 250VAC |
Current rating | 5A |
Electrical life | 50,000 Cycles |
Illuminated | Yes |
Illumination colour | Red |
Illumination voltage | 12VDC |
Material | Stainless Steel |
Mounting style | Panel |
Number of positions | 2 |
Operating temperature | -25°C to +85°C |
Panel cut out | 19mm |
Protection level | IP65 |
Switch operation | On-On |
Terminal type | Quick Connect |
Voltage rating | 250VAC |
