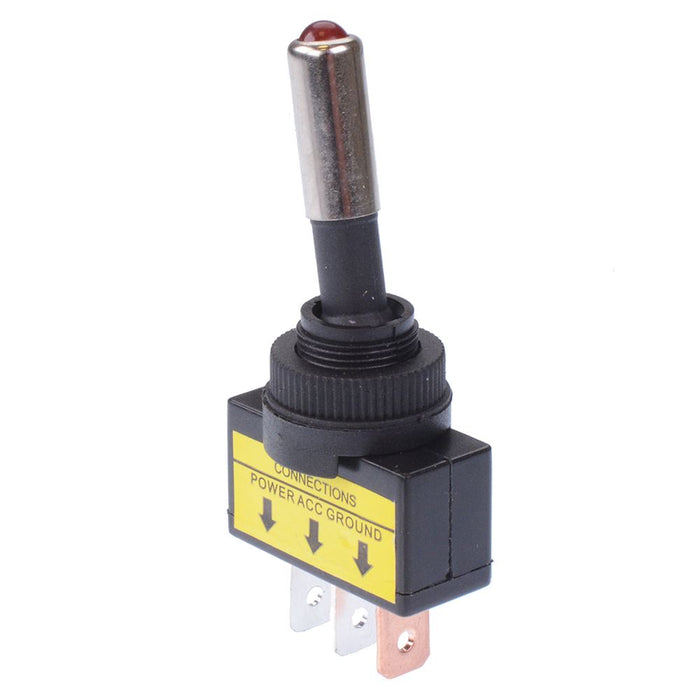

Red LED On-Off Toggle Switch SPST 12V 20A
SKU 550105
MPN: 550105
Availability:
57 in stock
Original price
£1.50
-
Original price
£1.50
Original price
£1.50
Inc VAT
£1.50
-
£1.50
Current price
£1.50
Inc VAT
SPST toggle switch and Red LED indicator which illuminates when the switch is in the 'On' position. The switch is suitable for a wide variety of appliances, panel mounting and is commonly used for automotive applications.
On-Off Toggle Switch SPST Contacts 20A 12VDC 12mm Panel Cut Out Dimensions: 61 x 12 x 26.2mm (Height x Width x Length) Red LED Indicator LED requires 12VDC illumination 6.3mm Quick Connect Terminals
Specification
| Actuation | Latching |
| Back order lead time | 45 Days |
| Colour | Red |
| Contact configuration | SPST |
| Contact rating | 20A 12VDC |
| Current rating | 20A |
| Illuminated | Yes |
| Illumination colour | Red |
| Illumination voltage | 12VDC |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -25°C to +85°C |
| Panel cut out | 12mm |
| Switch operation | On-Off |
| Terminal type | Quick Connect |
| Voltage rating | 12VDC |
