Red LED Off-(On) Momentary 12mm Vandal Resistant Push Button Switch SPST
SKU 481604
MPN: 481604
Availability:
36 in stock
Original price
£4.99
-
Original price
£4.99
Original price
£4.99
£4.99
-
£4.99
Current price
£4.99

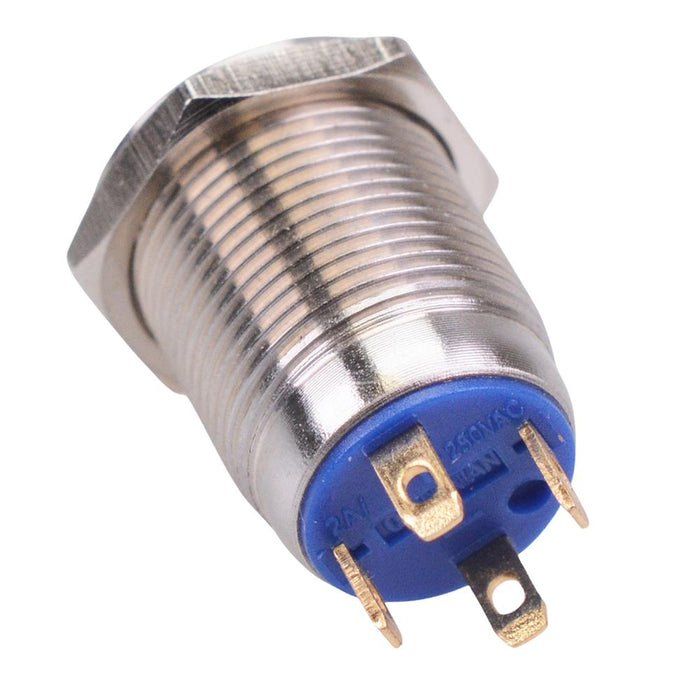

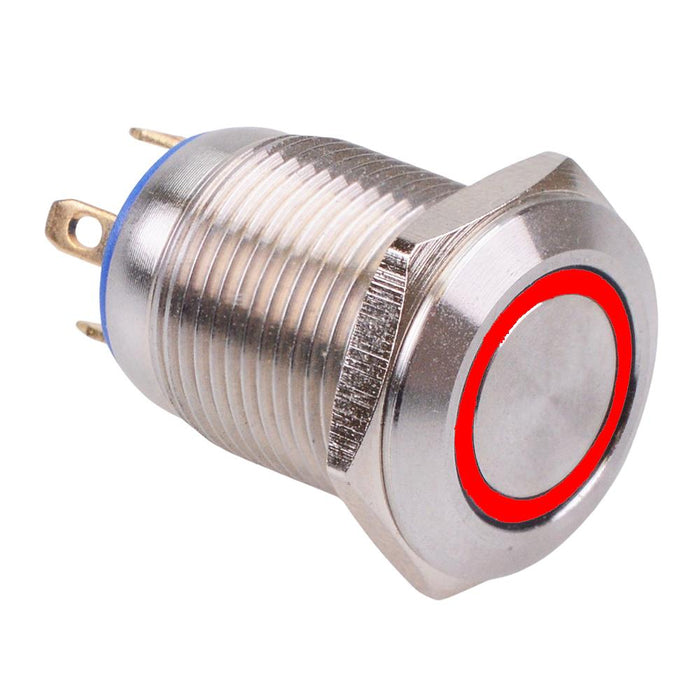

Momentary vandal resistant push button switch featuring a red 12V LED and SPST normally open contacts. The switch is manufactured from stainless steel and features IP65 protection rating, making it suitable for a wide range of automotive and other 12V applications.
Momentary Off-(On) action SPST-NO contacts Red LED 12V illumination voltage IP65 protection rating 12mm panel cut-out diameter Solder terminals Rating: 2A 36VDC
Specification
| Actuation | Momentary |
| Back Order Lead Time | 30 Days |
| Colour | Red |
| Contact Configuration | SPDT |
| Contact Rating | 2A 36VDC |
| Current Rating | 2A |
| Electrical Life | 50,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 12VDC |
| Material | Stainless Steel |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 12mm |
| Protection Level | IP65 |
| Switch Operation | Off-(On) |
| Terminal Type | Quick Connect |
| Voltage Rating | 36VDC |
