Red LED Oblong On-Off Rocker Switch SPST 20A 12V
SKU 486932
MPN: 486932
Availability:
480 in stock
Original price
£1.09
-
Original price
£1.09
Original price
£1.09
Inc VAT
£1.09
-
£1.09
Current price
£1.09
Inc VAT

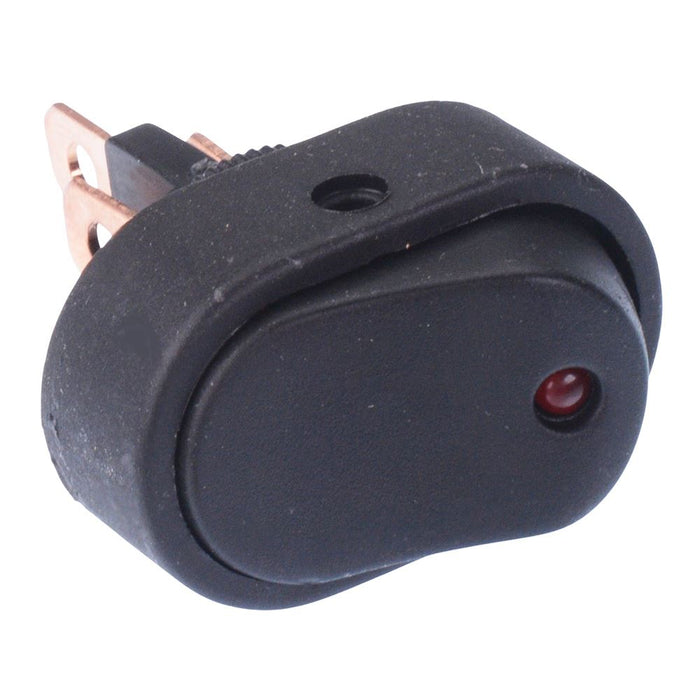

Red rocker switch housed in an oblong shape package, featuring SPST contacts and On-Off operation. The switch features 6.35mm quick connect terminals and 12V LED illumination, making it suitable for automotive applications.
Red 12V illumination On-Off operation SPST contacts Rating: 20A 12V 6.35mm quick connect terminals Panel cut-out: 12mm Dimensions: 43.7 x 31 x 19.5mm (height x length x width)
Specification
| Actuation | Latching |
| Back order lead time | 45 Days |
| Colour | Red |
| Contact configuration | SPST |
| Contact rating | 20A 12VDC |
| Current rating | 20A @ 12VDC |
| Electrical life | 10,000 Cycles |
| Illuminated | Yes |
| Illumination colour | Red |
| Illumination voltage | 12VDC |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -25°C to +85°C |
| Panel cut out | 12mm |
| Switch operation | On-Off |
| Terminal type | Quick Connect |
| Voltage rating | 12VDC |
