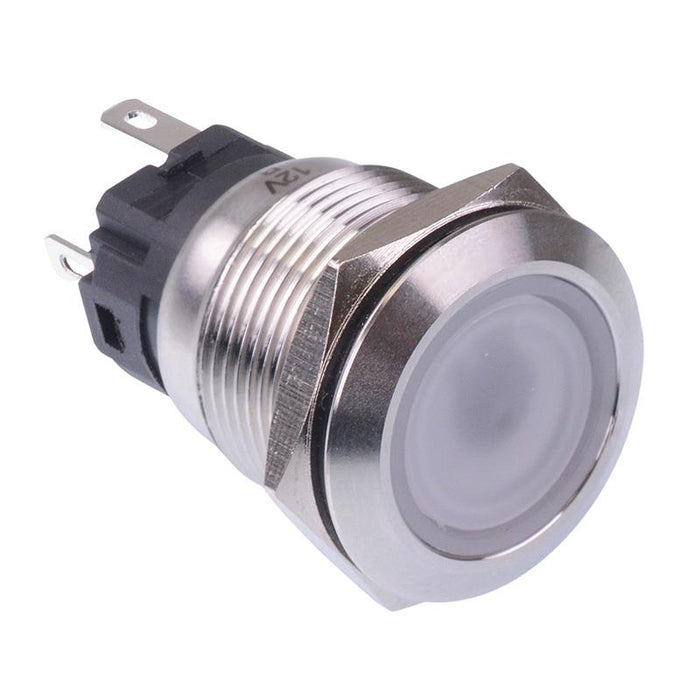

Red LED Momentary 19mm Vandal Push Button Switch SPDT 12V
by Langir
SKU 486510
MPN: L19TFMSRR12V
Availability:
7 in stock
Original price
£14.46
-
Original price
£14.46
Original price
£14.46
Inc VAT
£14.46
-
£14.46
Current price
£14.46
Inc VAT
Momentary vandal resistant push button switch featuring a red LED requiring 12V supply voltage and 19mm panel cut-out diameter. The switch housing is stainless steel giving it a long lifespan and resistance against rust. The switch features IP65 protection rating and is suitable for a range of 12V applications including automotive and marine.
Suitable for use with adhesive labels Momentary action Red 12V LED Panel cut-out: 19mm Panel thickness: 1-10mm Current rating: 3A Protection level: IP65 Contacts: NO/NC Material: stainless steel Terminals: 2.8 x 0.5mm Dimensions: 37 x 22mm (height x diameter)
Specification
| Actuation | Momentary |
| Back order lead time | 45 Days |
| Contact configuration | SPDT |
| Contact rating | 3A 250VAC |
| Current rating | 3A |
| Electrical life | 30,000 Cycles |
| Illuminated | Yes |
| Illumination colour | Red |
| Illumination voltage | 12VDC |
| Material | Stainless Steel |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating force | 5N |
| Operating temperature | -20°C to +55°C |
| Panel cut out | 19mm |
| Panel thickness | 1-10mm |
| Protection level | IP65 |
| Switch operation | On-(On) |
