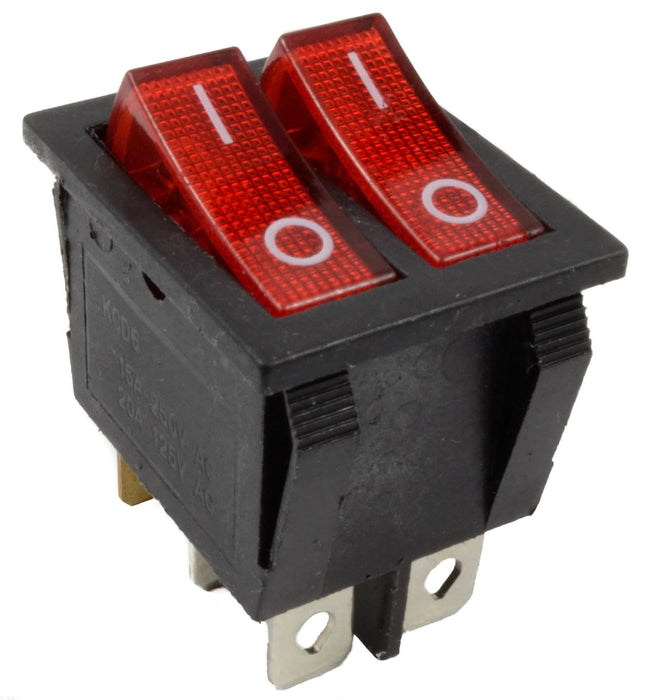

Red LED Dual On-Off Rectangle Rocker Switch 230V

SKU 131007

MPN: 131007

Availability:
172 in stock
Original price £1.31 - Original price £1.31
Original price
£1.31 Inc VAT
£1.31 - £1.31
Current price £1.31 Inc VAT
Dual rectangle rocker switch with SPST contacts suitable for applications where 2 circuits need to be switched independantly.

  • On-off action
  • SPST contacts
  • 6.3mm quick connect terminals
  • 23 x 20mm panel cut-out
  • Maximum current: 15A
  • Maximum voltage: 250VAC
  • Dimensions: 27 x 23 x 21mm (Height x Length x Width)
  • Specification
    Actuation Latching
    Back order lead time 40 Days
    Colour Red
    Contact configuration DPST
    Contact rating 15A 250VAC
    Current rating 15A
    Electrical life 10,000 Cycles
    Illuminated Yes
    Illumination colour Red
    Illumination voltage 230VAC
    Mounting style Panel
    Number of poles 2
    Number of positions 2
    Operating temperature -25°C to +85°C
    Panel cut out 28.5 x 22mm
    Switch operation On-Off
    Terminal type Quick Connect
    Voltage rating 250VAC
