Red LED 24V On-On Latching 19mm Vandal Push Switch SPDT

SKU 484990

MPN: 484990

Availability:
30 in stock
Original price £6.77 - Original price £6.77
Original price
£6.77 Inc VAT
£6.77 - £6.77
Current price £6.77 Inc VAT

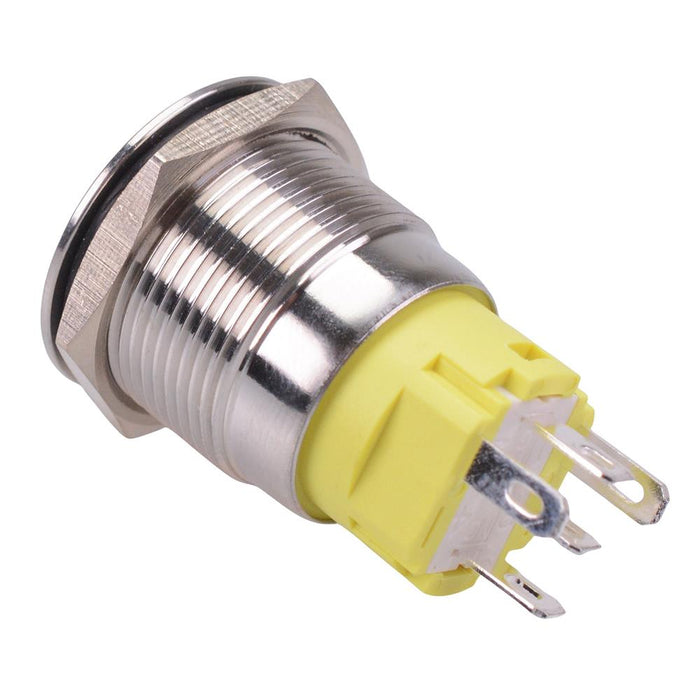

Latching 19mm vandal resistant push button switch manufactured from stainless steel, featuring a red LED and NO/NC contacts. The switch features IP65 protection rating and is suitable for 24V applications including automotive.

  • Latching On-On action
  • Red LED
  • 24V illumination voltage
  • IP65 protection rating
  • 19mm panel cut-out diameter
  • NO/NC contacts
  • 2.8mm terminals
  • Rating: 5A 250VAC
  • Specification
    Actuation Latching
    Back order lead time 30 Days
    Colour Red
    Contact configuration SPDT
    Contact rating 5A 250VAC
    Current rating 5A
    Electrical life 50,000 Cycles
    Illuminated Yes
    Illumination colour Red
    Illumination voltage 24VDC
    Material Stainless Steel
    Mounting style Panel
    Number of positions 2
    Operating temperature -25°C to +85°C
    Panel cut out 19mm
    Protection level IP65
    Switch operation On-On
    Terminal type Quick Connect
    Voltage rating 250VAC
