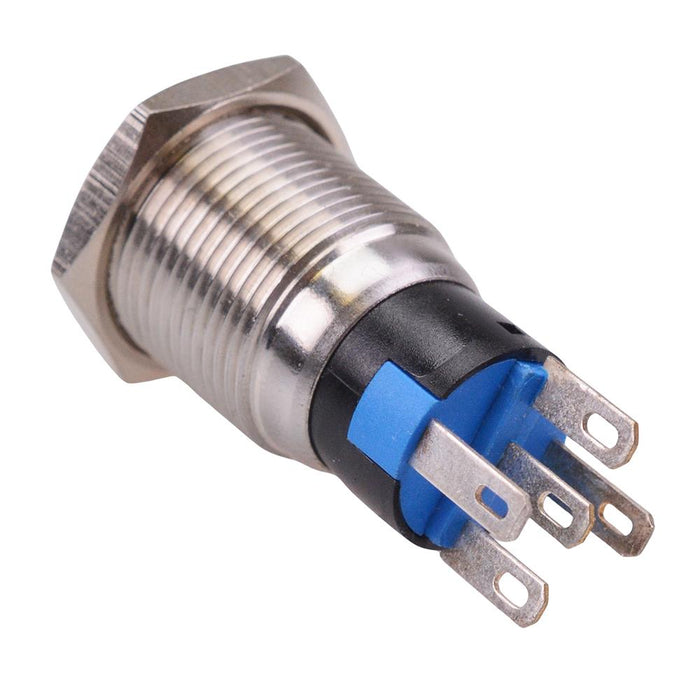

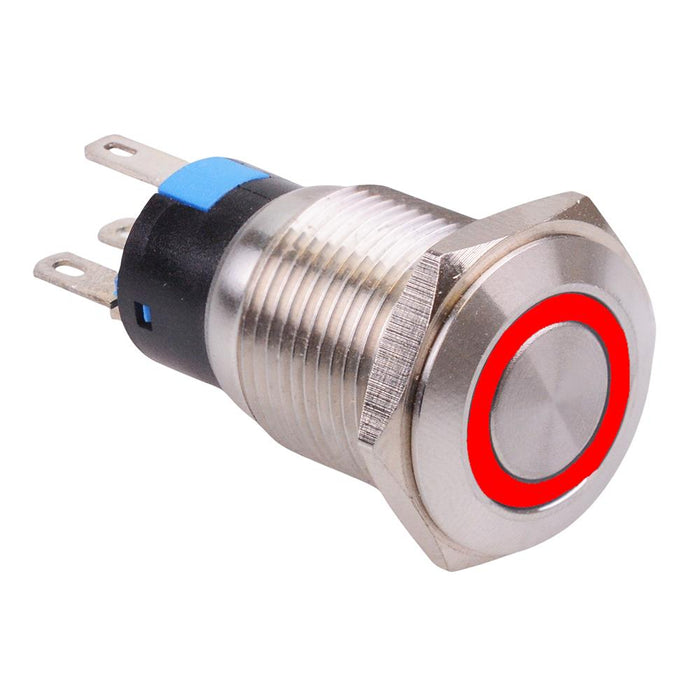

Red LED 16mm Momentary Vandal Resistant Switch 3A SPDT

by Langir
SKU 550460

MPN: L16FM1SRR12V

Availability:
55 in stock
Original price £5.85 - Original price £5.85
Original price
£5.85 Inc VAT
£5.85 - £5.85
Current price £5.85 Inc VAT
Vandal resistant switch with a stainless steel construction LED ring illumination. Featuring a flush operating button, suitable for applications where an attractive tamper proof switch is required.

  • Momentary action
  • SPDT NO/NC contact configuration
  • Red LED 12V illumination
  • Stainless steel construction
  • 16mm panel cut-out
  • 3A 250VAC rating
  • Specification
    Actuation Momentary
    Back order lead time 45 Days
    Colour Red
    Contact configuration SPDT
    Contact rating 3A 250VAC
    Current rating 3A
    Electrical life 50,000+ Cycles
    Illuminated Yes
    Illumination colour Red
    Illumination voltage 12VDC
    Material Stainless Steel
    Mounting style Panel
    Number of positions 2
    Operating temperature -20°C to +55°C
    Panel cut out 16mm
    Protection level IP65
    Switch operation On-(On)
    Terminal type Solder
    Voltage rating 250VAC
