Red LED 14mm Metal Panel Indicator 24V
SKU 489290
MPN: FL1M-14SJ-1 Red 24V
Availability:
30 in stock
Original price
£4.12
-
Original price
£4.12
Original price
£4.12
Inc VAT
£4.12
-
£4.12
Current price
£4.12
Inc VAT
Red 24V panel indicator light featuring a black metal bezel, wide operating temperature range and long lifespan. The indicator requires a 14mm panel cut-out diameter and is suitable for a wide range of DC applications in most environments.

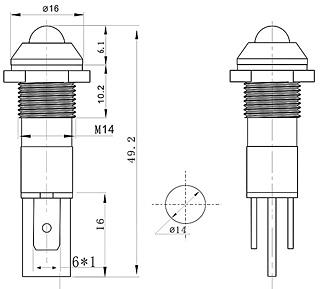

Voltage: 24V Colour: red Panel cut-out: 14mm Fitted with resistor Supplied with nut and gasket 6.3mm quick connect terminals Dimensions: 49.2 x 16mm (length x diameter)
Specification
| Back order lead time | 30 Days |
| Colour | Red |
| Diameter | 16mm |
| Forward current | 20mA |
| Lamp type | LED |
| Length | 49.2mm |
| Life expectancy | 100,000 Hours |
| Mouting type | Panel Mount |
| Operating temperature | -25°C to +85°C |
| Panel cut out | 14mm |
| Voltage rating | 24VDC |
