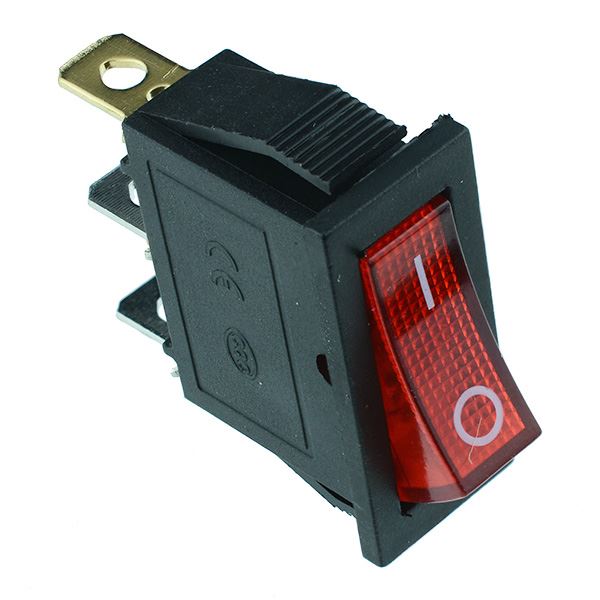

Red illuminated Rectangle Rocker Switch 230V SPST
SKU 480901
MPN: 480901
Availability:
Out of stock
Sold out
Original price
£1.12
-
Original price
£1.12
Original price
£1.12
£1.12
-
£1.12
Current price
£1.12
Red illuminated 230V rectangle rocker switch with SPST contacts and On-Off action suitable for snap-in mounting. The switch features a compact housing with a high rating making it suitable for a wide range of applications.
SPST contacts On-Off action Red illumination 6.3mm quick connect terminals Snap-in mounting Panel cut-out: 28 x 10mm Maximum voltage: 250VAC Maximum current: 15A Dimensions: 36.3 x 14 x 32mm (Height x Width x Length)
Specification
| Actuation | Latching |
| Back Order Lead Time | 40 Days |
| Colour | Red |
| Contact Configuration | SPST |
| Contact Rating | 15A 250VAC |
| Current Rating | 15A |
| Electrical Life | 10,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 230VAC |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 28mm x 10mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
