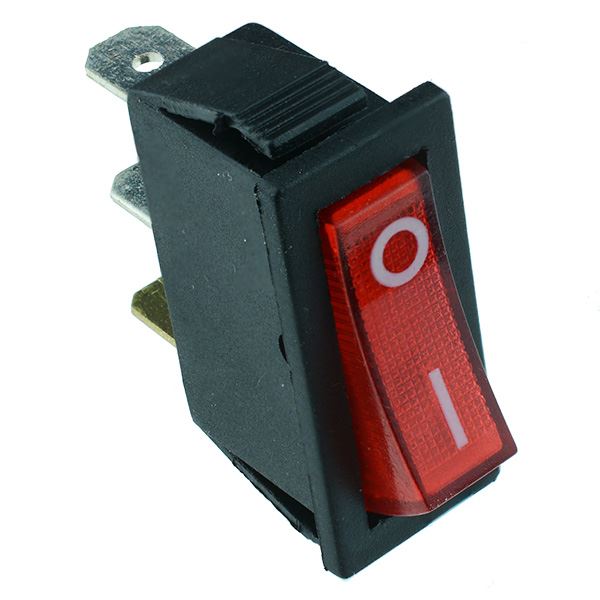

Red illuminated Rectangle Rocker Switch 230V SPST

SKU 480902

MPN: 480902

Availability:
Only 3 left!
Original price £0.94 - Original price £0.94
Original price
£0.94 Inc VAT
£0.94 - £0.94
Current price £0.94 Inc VAT
Red illuminated 230V rectangle rocker switch with SPST contacts and On-Off action suitable for snap-in mounting. The switch features a compact housing with a high rating making it suitable for a wide range of commerical and domestic applications.

  • SPST contacts
  • On-Off action
  • Red illumination
  • 4.8mm quick connect terminals
  • Snap-in mounting
  • Panel cut-out: 27.5 x 12.5mm
  • Maximum voltage: 250VAC
  • Maximum current: 15A
  • Dimensions: 27 x 16 x 32.5mm (Height x Width x Length)
  • Specification
    Actuation Latching
    Back order lead time 40 Days
    Colour Red
    Contact configuration SPST
    Contact rating 15A 250VAC
    Current rating 15A
    Electrical life 10,000 Cycles
    Illuminated Yes
    Illumination colour Red
    Illumination voltage 230VAC
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Operating temperature -25°C to +85°C
    Panel cut out 27.5mm x 12.5mm
    Switch operation On-Off
    Terminal type Quick Connect
    Voltage rating 250VAC
