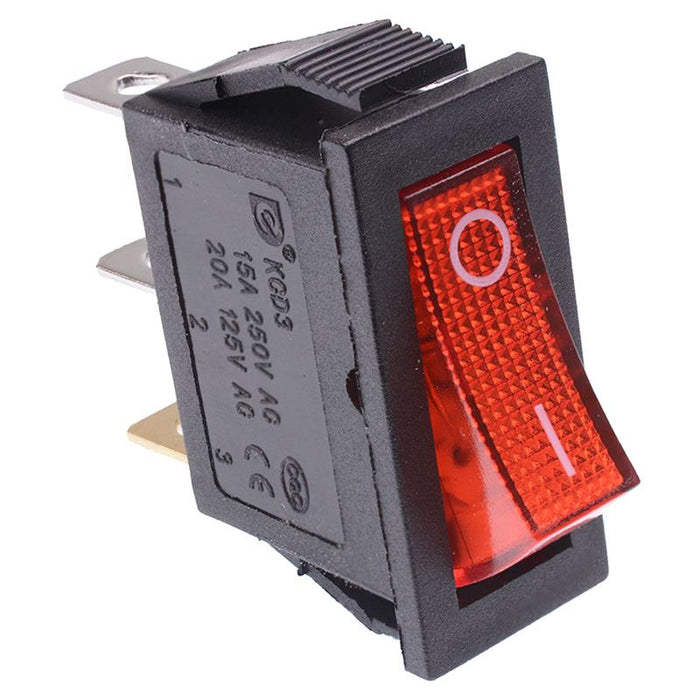

Red illuminated Rectangle Rocker Switch 12V SPST

SKU 132003

MPN: 132003

Availability:
Out of stock
Sold out
Original price £0.75 - Original price £0.75
Original price
£0.75 Inc VAT
£0.75 - £0.75
Current price £0.75 Inc VAT
illuminated rectangle rocker switch with SPST contacts and On-Off action suitable for snap-in mounting. The switch features a compact housing with a high rating making it suitable for a wide range of applications.

  • SPST contacts
  • On-Off action
  • Red 12V illumination
  • 6.3mm quick connect terminals
  • Snap-in mounting
  • Panel cut-out: 28 x 10mm
  • Maximum voltage: 250VAC
  • Maximum current: 15A
  • Dimensions: 36.5 x 13.5 x 30.5mm (Height x Width x Length)
  • Specification
    Actuation Latching
    Back order lead time 40 Days
    Colour Red
    Contact configuration SPST
    Contact rating 15A 250VAC, 20A 125VAC
    Current rating 20A
    Electrical life 10,000+ Cycles
    Illuminated Yes
    Illumination colour Red
    Illumination voltage 12VDC
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Operating temperature -25°C to +85°C
    Panel cut out 28 x 10mm
    Switch operation On-Off
    Terminal type Quick Connect
    Voltage rating 250VAC
