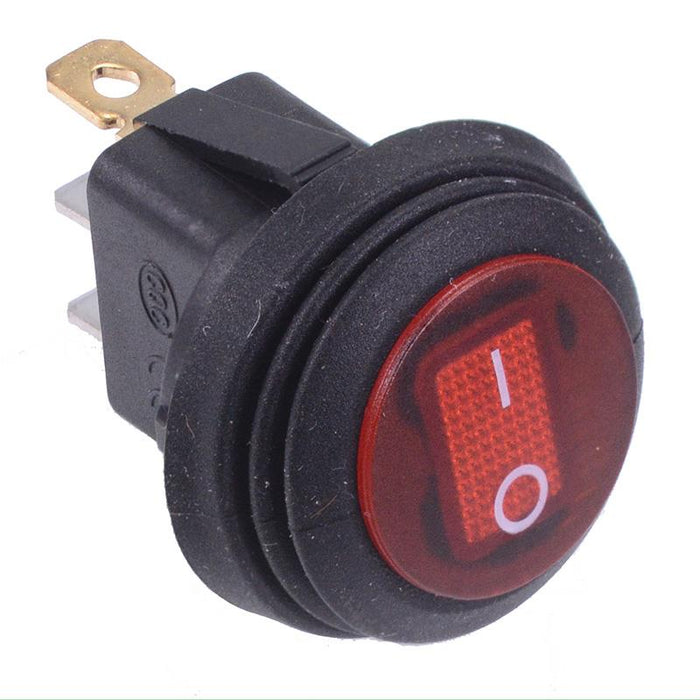

Red Illuminated On-Off Waterproof Rocker Switch SPST 230V

SKU 482832

MPN: 482832

Availability:
153 in stock
Original price £1.32 - Original price £1.32
Original price
£1.32 Inc VAT
£1.32 - £1.32
Current price £1.32 Inc VAT
Waterproof circular rocker switch featuring red 230V illumination and snap-in mounting. The switch offers a high switching current in a compact design, making them suitable for a wide range of AC applications.

  • On-Off action
  • SPST contacts
  • 230V illumination
  • 4.8mm quick connect terminals
  • Rating: 10A 125VAC, 6A 250VAC
  • 20mm panel cut-out diameter
  • Dimensions: 34.2 x 23mm (Height x Diameter)
  • Specification
    Actuation Latching
    Back order lead time 40 Days
    Contact configuration SPST
    Contact rating 6A 250VAC, 10A 125VAC
    Current rating 10A
    Electrical life 10,000 Cycles
    Illuminated Yes
    Illumination colour Red
    Illumination voltage 230VAC
    Material PA66
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Operating temperature -25°C to +85°C
    Panel cut out 20mm
    Protection level IP65
    Switch operation On-Off
    Terminal type Quick Connect
    Voltage rating 250VAC
