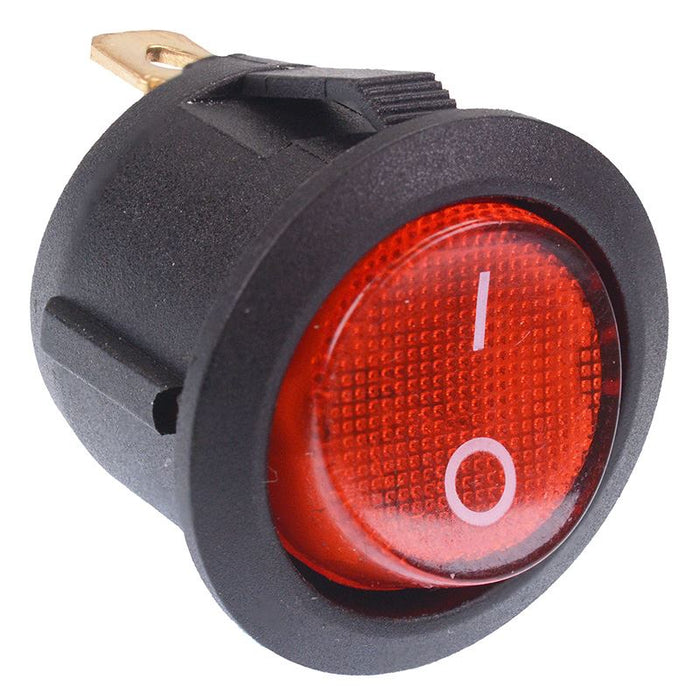

Red illuminated On-Off Round Rocker Switch 230V SPST

SKU 130028

MPN: 130028

Availability:
491 in stock
Original price £0.75 - Original price £0.75
Original price
£0.75
£0.75 - £0.75
Current price £0.75
illuminated circular rocker switch with SPST contacts and on-off action. The switch is designed for snap-in mounting and is suitable for a wide range of applications.

  • On-off action
  • SPST contacts
  • 230VAC illumination
  • 4.8mm quick connect terminals
  • Panel cut-out: 20mm
  • Dimensions: 29.2 x 23mm (Height x Diameter)
  • Maximum current: 6A
  • Maximum voltage: 250VAC
  • Specification
    Actuation Latching
    Back Order Lead Time 40 Days
    Colour Red
    Contact Configuration SPST
    Contact Rating 6A 250VAC
    Current Rating 6A
    Electrical Life 10,000 Cycles
    Illuminated Yes
    Illumination Colour Red
    Illumination Voltage 230VAC
    Mounting Style Panel
    Number of Poles 1
    Number of Positions 2
    Operating Temperature -25°C to +85°C
    Panel Cut Out 20mm
    Switch Operation On-Off
    Terminal Type Quick Connect
    Voltage Rating 250VAC
