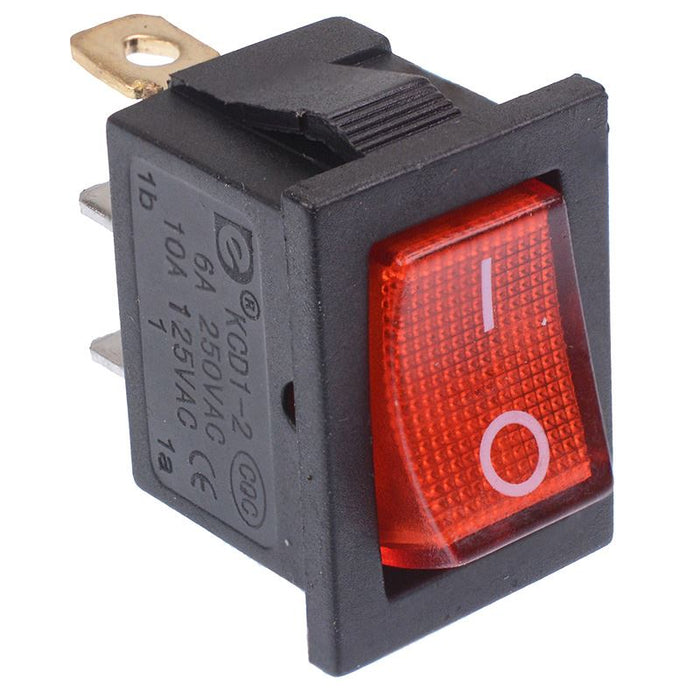

Red illuminated On-Off Rectangle Rocker Switch 12V SPST
SKU 130016
MPN: 130016
Availability:
Out of stock
Sold out
Original price
£0.84
-
Original price
£0.84
Original price
£0.84
£0.84
£0.84
-
£0.84
Current price
£0.84
illuminated rectangle rocker switch with SPST contacts and on-off action. The switch is designed for snap-in mounting and is suitable for a wide range of applications.
On-off action SPST contacts 12V illumination 4.8mm quick connect terminals Panel cut-out: 19.2 x 13mm Dimensions: 25 x 21 x 15mm (Height x Length x Width) Maximum current: 6A Maximum voltage: 250VAC
Specification
| Actuation | Latching |
| Back Order Lead Time | 40 Days |
| Colour | Red |
| Contact Configuration | SPST |
| Contact Rating | 6A 250VAC |
| Current Rating | 6A |
| Electrical Life | 10,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 12VDC |
| Material | PA66 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 19.2 x 13mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
