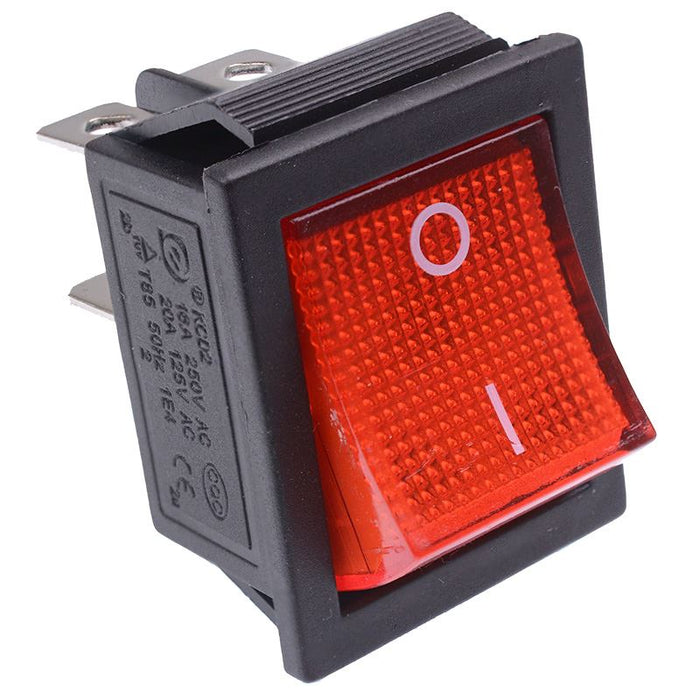

Red illuminated On-Off Large Rectangle Rocker Switch DPST 12V

SKU 131003

MPN: 131003

Availability:
249 in stock
Original price £0.87 - Original price £0.87
Original price
£0.87 Inc VAT
£0.87 - £0.87
Current price £0.87 Inc VAT
illuminated rectangle rocker switch with DPST contacts suitable for applications where a higher rated switch is required.

  • On-off action
  • DPST contacts
  • 12V illumination
  • 6.3mm quick connect terminals
  • 28.5 x 21mm panel cut-out
  • Maximum current: 15A
  • Maximum voltage: 250VAC
  • Dimensions: 35.3 x 31.2 x 25mm (Height x Length x Width)
  • Specification
    Actuation Latching
    Back order lead time 40 Days
    Colour Red
    Contact configuration DPST
    Contact rating 15A 250VAC
    Current rating 15A
    Illuminated Yes
    Illumination colour Red
    Illumination voltage 12VDC
    Mounting style Panel
    Number of poles 2
    Number of positions 2
    Operating temperature -25°C to +85°C
    Panel cut out 28.5 x 21.5mm
    Switch operation On-Off
    Terminal type Quick Connect
    Voltage rating 250VAC
