![Red illuminated Large On-Off Rocker Switch 230V](http://pro.maplin.co.uk/cdn/shop/files/0ee191eb-bf74-424b-9a0b-3951220390f5_700x700.jpg?v=1687278071)

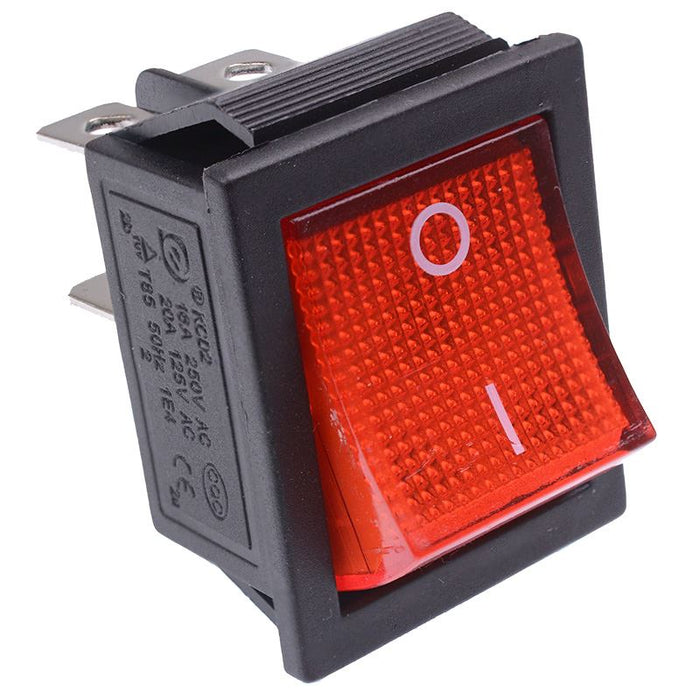

Red illuminated Large On-Off Rocker Switch 230V
SKU 131013
MPN: 131013
Availability:
399 in stock
Original price
£0.97
-
Original price
£0.97
Original price
£0.97
Inc VAT
£0.97
-
£0.97
Current price
£0.97
Inc VAT
illuminated rectangle rocker switch with DPST contacts suitable for applications where a higher rated switch is required.
On-off action DPST contacts 230VAC illumination 6.3mm quick connect terminals 28.5 x 21.5mm panel cut-out Maximum current: 15A Maximum voltage: 250VAC Dimensions: 35.5 x 31 x 25.3mm (Height x Length x Width)
Specification
Actuation | Latching |
Back order lead time | 40 Days |
Colour | Red |
Contact configuration | DPST |
Contact rating | 15A 250VAC |
Current rating | 15A |
Illuminated | Yes |
Illumination colour | Red |
Illumination voltage | 230VAC |
Mounting style | Panel |
Number of poles | 2 |
Number of positions | 2 |
Operating temperature | -25°C to +85°C |
Panel cut out | 28.5 x 21.5mm |
Switch operation | On-Off |
Terminal type | Quick Connect |
Voltage rating | 250VAC |
