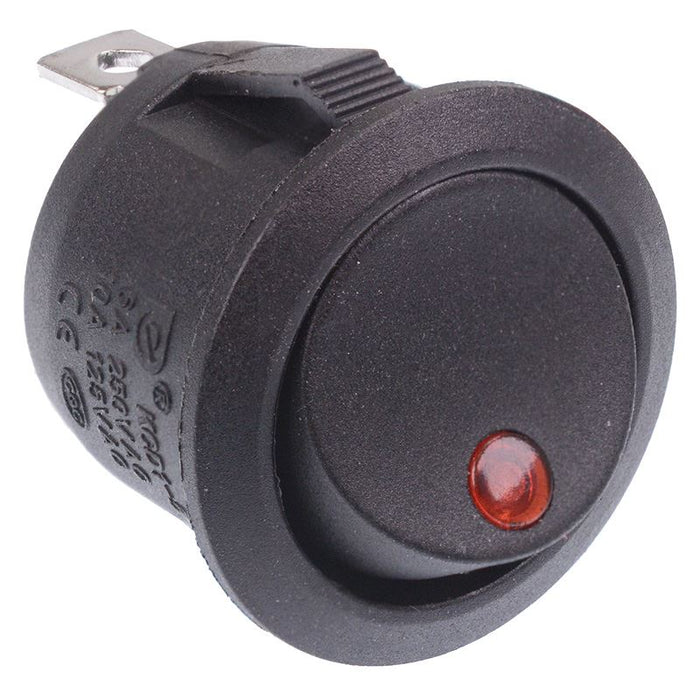

Red illuminated Dot On-Off Round Rocker Switch 12V SPST

SKU 130012

MPN: 130012

Availability:
Out of stock
Sold out
Original price £0.86 - Original price £0.86
Original price
£0.86 Inc VAT
£0.86 - £0.86
Current price £0.86 Inc VAT
illuminated circular rocker switch with SPST contacts and on-off action. The switch is designed for snap-in mounting and is suitable for a wide range of applications.

  • On-off action
  • SPST contacts
  • 12V illumination
  • 4.8mm quick connect terminals
  • Panel cut-out: 20mm
  • Dimensions: 29.2 x 23mm (Height x Diameter)
  • Maximum current: 6A
  • Maximum voltage: 250VAC
  • Specification
    Actuation Latching
    Back order lead time 40 Days
    Colour Red
    Contact configuration SPST
    Contact rating 6A 250VAC
    Current rating 6A
    Electrical life 10,000 Cycles
    Illuminated Yes
    Illumination colour Red
    Illumination voltage 12VDC
    Material PA66
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Operating temperature -25°C to +85°C
    Panel cut out 20mm
    Switch operation On-Off
    Terminal type Quick Connect
    Voltage rating 250VAC
