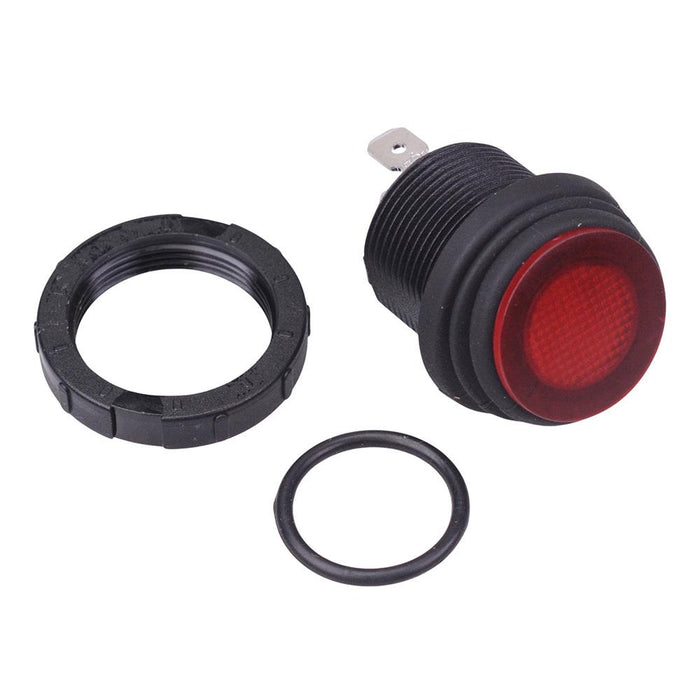

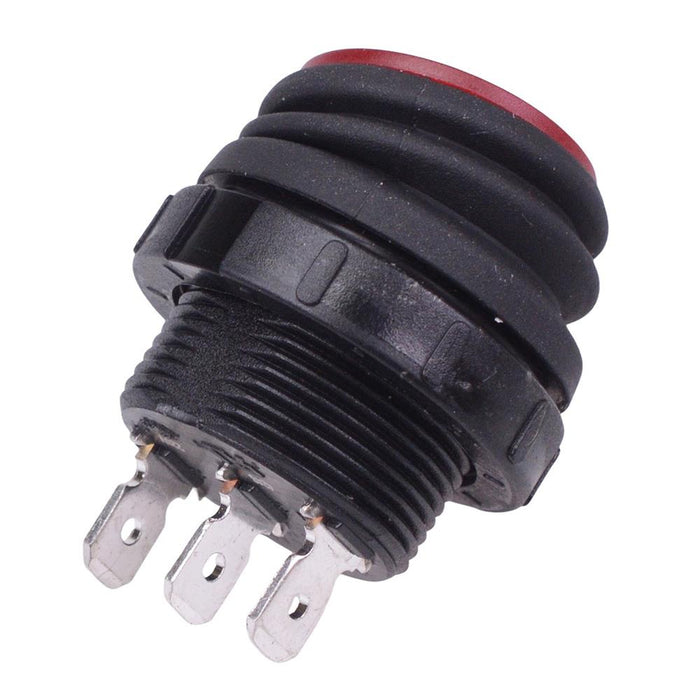

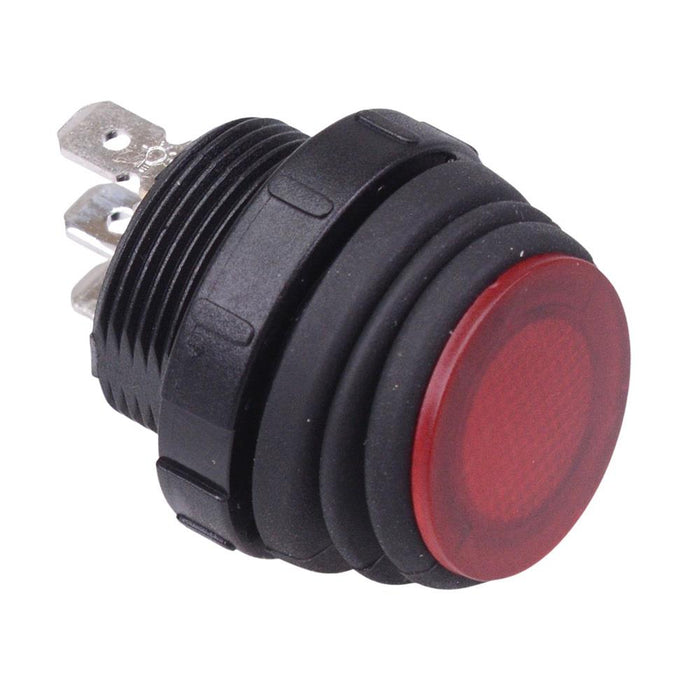

Red illuminated 230V Waterproof Round 20mm Rocker Switch IP68 SPST 16A
by Canal
SKU 491870
MPN: MR2-110R2N-GBRQ-2ERC
Availability:
20 in stock
Original price
£1.88
-
Original price
£1.88
Original price
£1.88
£1.88
-
£1.88
Current price
£1.88
Red illuminated waterproof rocker switch featuring SPST contacts and On-Off function. The switch requires a 20mm panel cut-out and features IP68 protection rating above the panel. The switch is rated up to 16A making it suitable for a wide range of AC applications.
Red neon illumination illumination voltage: 200-250VAC Function: On-Off Contacts: SPST Panel cut-out: 20mm Panel thickness: 1.0-3.0mm Rating: 16(8)A 250VAC Protection rating: IP68 (above the panel) 4.8mm quick connect terminals Dimensions: 35.2 x 27.0mm (height x diameter)
Specification
| Actuation | Latching |
| Back Order Lead Time | 120 Days |
| Colour | Red |
| Contact Configuration | SPST |
| Contact Rating | 16(8)A 250VAC |
| Current Rating | 16A |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 200-250VAC |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Panel Cut Out | 20mm |
| Panel Thickness | 1-3mm |
| Protection Level | IP68 |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
