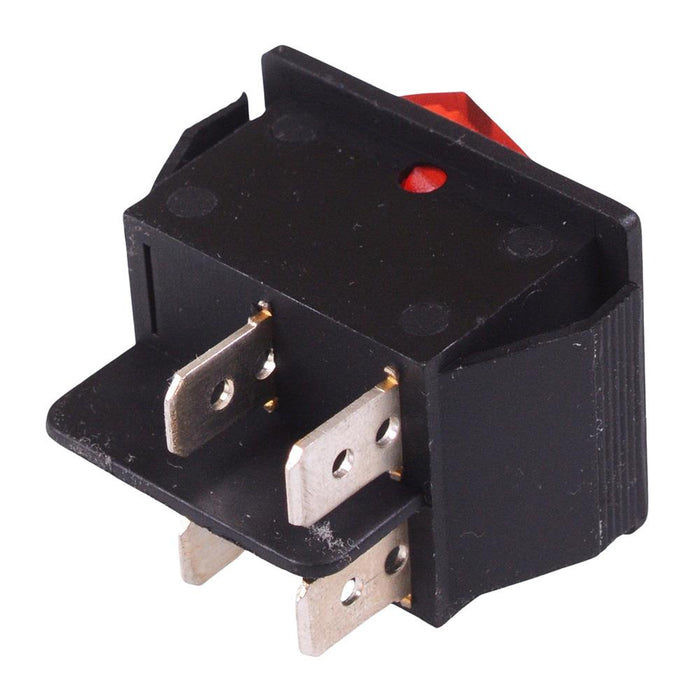

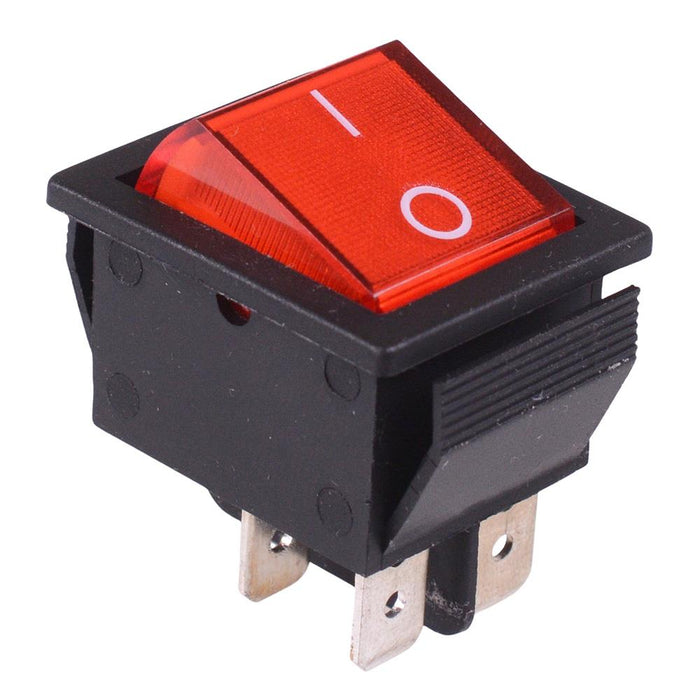

Red illuminated 230V Rocker Switch DPST 15A
SKU 490363
MPN: IRS-201-1A3
Availability:
62 in stock
Original price
£1.15
-
Original price
£1.15
Original price
£1.15
£1.21
£1.21
-
£1.21
Current price
£1.21
Red illuminated rocker switch featuring quick connect terminals and DPST contacts. The switch illuminates with 230V and is suitable for applications including industrial, appliances, power applications, control panels etc.
On-Off operation DPST contacts 6.35mm quick connect terminals Rating: 15A 250VAC, 20A 125VAC Red 230V illumination Panel cut-out: 28 x 21.5mm Dimensions: 31.5 x 25.9 x 35.5mm (length x width x height)
Specification
| Actuation | Latching |
| Back Order Lead Time | 120 Days |
| Colour | Red |
| Contact Configuration | DPST |
| Contact Rating | 20A 125VAC, 15A 250VAC |
| Current Rating | 20A |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 230VAC |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Panel Cut Out | 28 x 21.5mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
