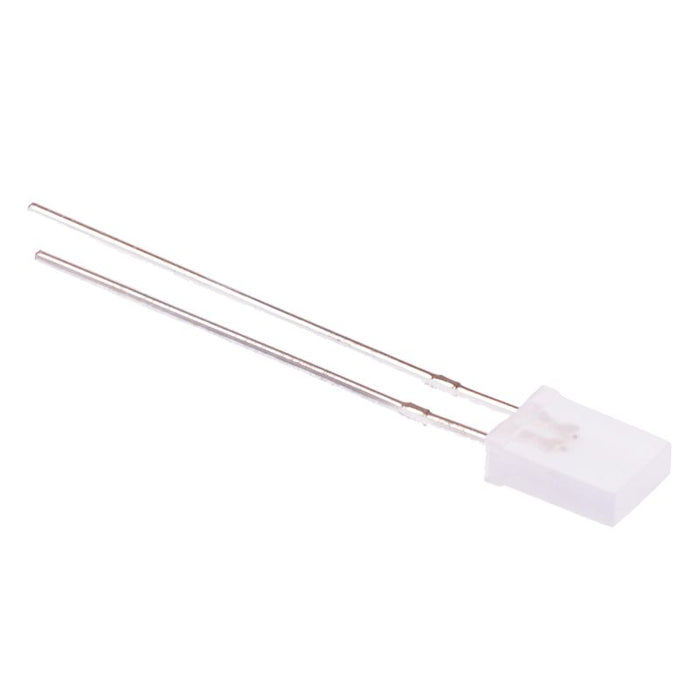

Red / Green Bi-Colour 2 x 5mm Rectangular Diffused LED 150°

SKU 484899

MPN: 257VGM1G-1B

Availability:
2870 in stock
Original price £0.14 - Original price £0.14
Original price
£0.14 Inc VAT
£0.14 - £0.14
Current price £0.14 Inc VAT
Red / green 2 x 5mm rectangle bipolar LED featuring a white diffused package allowing each colour to be illuminated by reversing the polarity. The LED is suitable for applications including use as indicators, backlighting and illumination.

  • Luminous intensity: red 70mcd, green 13mcd
  • Wavelength: red 624nm, green 571nm
  • Viewing angle: 150°
  • Forward voltage: 2.0V
  • Forward current: 25mA
  • Suitable for through-hole mounting
  • 2.54mm lead pitch
  • White diffused lens
  • Excellent weather resistance
  • Long lifespan
  • Specification
    Back order lead time 40 Days
    Colour Red / Green
    Forward current 25mA
    Forward voltage 2.0V
    Lens colour White
    Lens shape Rectangle
    Luminous intensity Red 70mcd, Green 13mcd
    Mode Constant
    Moq 5
    Mounting style Through Hole
    Number of pins 2
    Operating temperature -40°C to +80°C
    Package 5 x 2mm
    Packaging Bulk
    Power dissipation 60mW
    Viewing angle 150°
    Wavelength Red 624nm, Green 571nm
