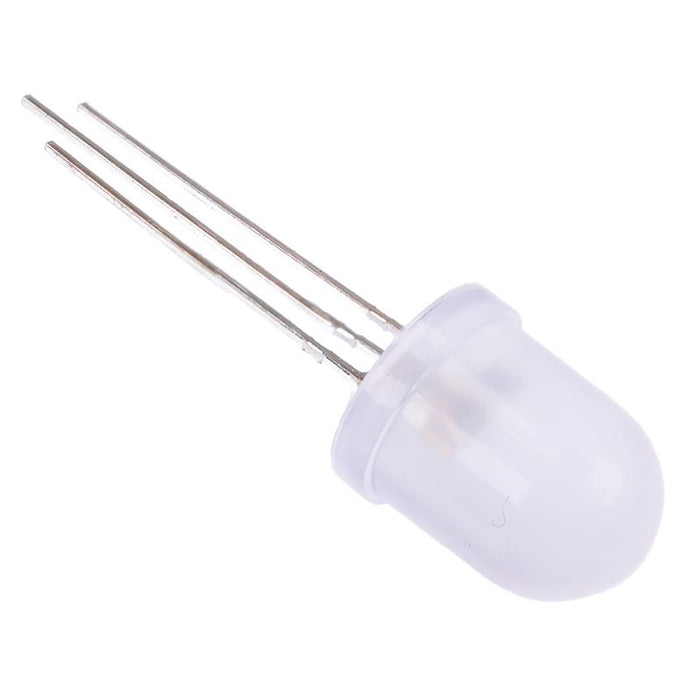

Red / Green Bi-Colour 10mm White Diffused LED Common Cathode
by Kingbright
SKU 484949
MPN: L-819SURKSGW
Availability:
18 in stock
Original price
£0.40
-
Original price
£0.40
Original price
£0.40
£0.40
£0.40
-
£0.40
Current price
£0.40
Red / green 10mm bi-colour LED featuring a white diffused package with 3 leads connected in common cathode. The LED is suitable for applications including use as indicators, backlighting and illumination.
Luminous intensity: red 150mcd, green 10mcd Wavelength: red 635nm, green 568nm Viewing angle: 60° Forward voltage: red 1.95V, green 2.2V Forward current: red 30mA, green 25mA Suitable for through-hole mounting 2.54mm lead pitch White diffused lens Excellent weather resistance Long lifespan
Specification
| Back Order Lead Time | 5 Days |
| Colour | Red / Green |
| Diameter | 10mm |
| Forward Current | Red 30mA, Green 25mA |
| Forward Voltage | Red 1.95V, Green 2.2V |
| Lens Colour | White |
| Lens Shape | Round |
| Luminous Intensity | Red 150mcd, Green 10mcd |
| Mode | Constant |
| MOQ | 5 |
| Mounting Style | Through Hole |
| Number of Pins | 3 |
| Operating Temperature | -40°C to +85°C |
| Package | 10mm |
| Packaging | Bulk |
| Power Dissipation | Red 170mW, Green 105mW |
| Viewing Angle | 60° |
| Wavelength | Red 635nm, Green 568nm |
