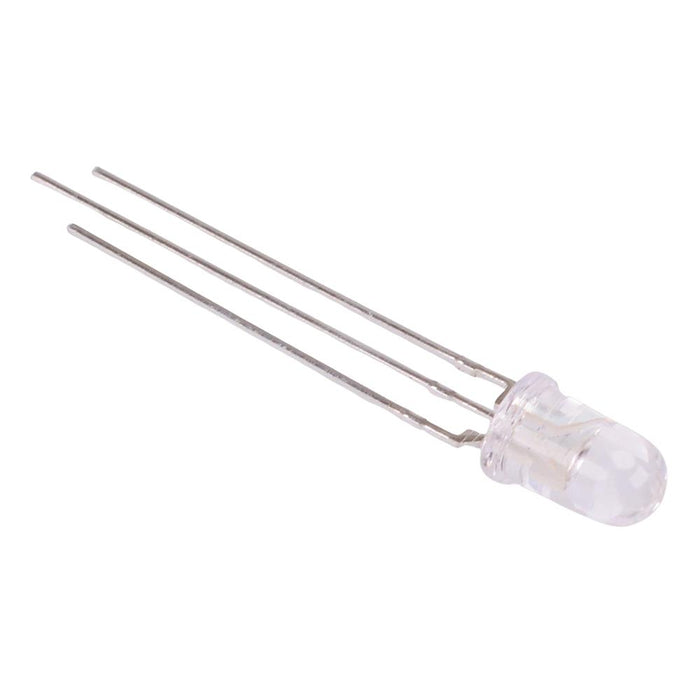

Red / Green 5mm Bi-Colour Water Clear LED 30° Common Anode
by Luckylight
SKU 491953
MPN: 509VPGC2E-A-3C-G51B
Availability:
4386 in stock
Original price
£0.18
-
Original price
£0.18
Original price
£0.18
£0.19
£0.19
-
£0.19
Current price
£0.19
Red and green 5mm bi-colour LED featuring a clear lens package with 3 leads connected in common anode. The LED is suitable for applications including indication, backlighting and illumination.
Luminous intensity: red 2000mcd, green 10,000mcd Wavelength: red 624nm, green 525nm Viewing angle: 30° Forward voltage: red 2.0V, green 3.0V Forward current: 25mA Suitable for through-hole mounting 2.54mm lead pitch Water clear lens Excellent weather resistance Long lifespan
Specification
| Back Order Lead Time | 60 Days |
| Colour | Red / Green |
| Diameter | 5mm |
| Forward Current | 25mA |
| Forward Voltage | Red 2.0V, Green 3.0V |
| Lens Colour | Clear |
| Lens Shape | Round |
| Luminous Intensity | Red 2000mcd, Green 10,000mcd |
| Mode | Constant |
| MOQ | 1 |
| Mounting Style | Through Hole |
| Number of Pins | 3 |
| Operating Temperature | -40°C to 80°C |
| Package | 5mm |
| Packaging | Bulk |
| Power Dissipation | Red 60mW, Green 85mW |
| Viewing Angle | 30° |
| Wavelength | Red 624nm, Green 525nm |
