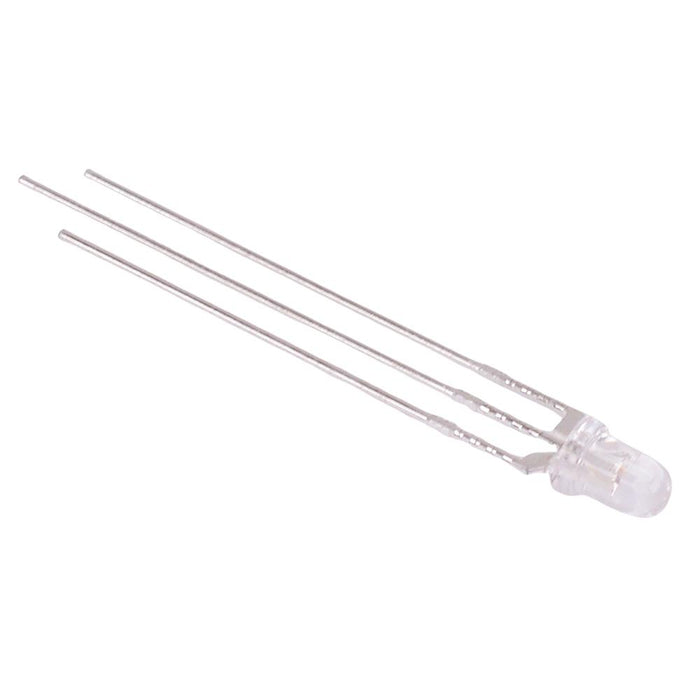

Red / Green 3mm Bi-Colour Water Clear LED 30° Common Cathode
by Luckylight
SKU 491951
MPN: 309VPGC2E-C-2B-G51B
Availability:
4684 in stock
Original price
£0.17
-
Original price
£0.17
Original price
£0.17
£0.18
£0.18
-
£0.18
Current price
£0.18
Red and green 3mm bi-colour LED featuring a clear lens package with 3 leads connected in common cathode. The LED is suitable for applications including indication, backlighting and illumination.
Luminous intensity: red 890mcd, green 10,000mcd Wavelength: red 624nm, green 525nm Viewing angle: 30° Forward voltage: red 2.0V, green 3.0V Forward current: 25mA Suitable for through-hole mounting 2.54mm lead pitch Water clear lens Excellent weather resistance Long lifespan
Specification
| Back Order Lead Time | 60 Days |
| Colour | Red / Green |
| Diameter | 3mm |
| Forward Current | 25mA |
| Forward Voltage | Red 2.0V, Green 3.0V |
| Lens Colour | Clear |
| Lens Shape | Round |
| Luminous Intensity | Red 890mcd, Green 10,000mcd |
| Mode | Constant |
| MOQ | 1 |
| Mounting Style | Through Hole |
| Number of Pins | 3 |
| Operating Temperature | -40°C to 80°C |
| Package | 3mm |
| Packaging | Bulk |
| Power Dissipation | Red 60mW, Green 85mW |
| Viewing Angle | 30° |
| Wavelength | Red 624nm, Green 525nm |
