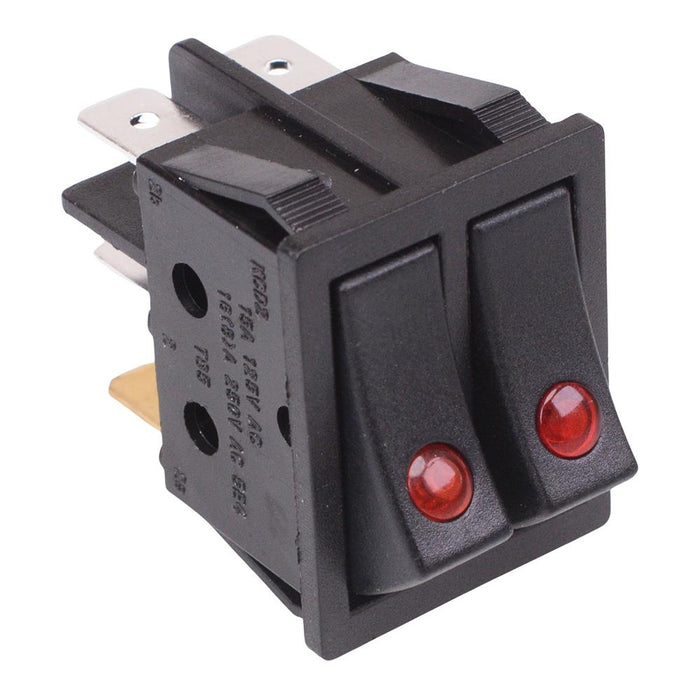

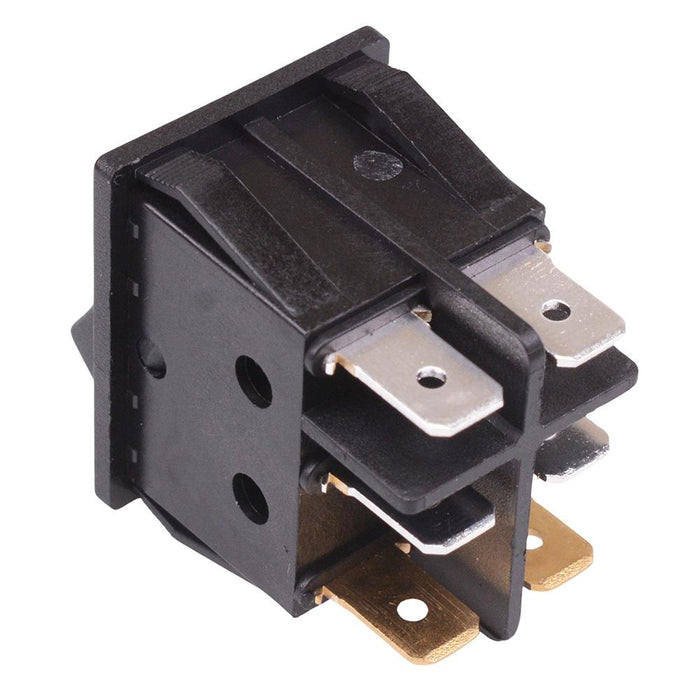

Red Dual illuminated Power Rocker Switch DPST 220V
SKU 490249
MPN: KCD2-4-2101EN 220V Red
Availability:
200 in stock
Original price
£1.35
-
Original price
£1.35
Original price
£1.35
£1.35
-
£1.35
Current price
£1.35
Red illuminated power rocker switch featuring dual actuators and DPST contacts. The switch requires 220VAC for illumination and is suitable for use with appliances.
DPST contacts Red 220VAC illumination 6.3mm quick connect terminals Panel cut-out: 27.0 x 22.0mm Rating: 15A 125VAC, 16(8)A 250VAC Dimensions: 38.5 x 31.9 x 24.8mm (height x length x width)
Specification
| Actuation | Latching |
| Back Order Lead Time | 120 Days |
| Colour | Red |
| Contact Configuration | DPST |
| Contact Rating | 16(8)A 250VAC |
| Current Rating | 16A |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 220VAC |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Panel Cut Out | 27 x 22mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
