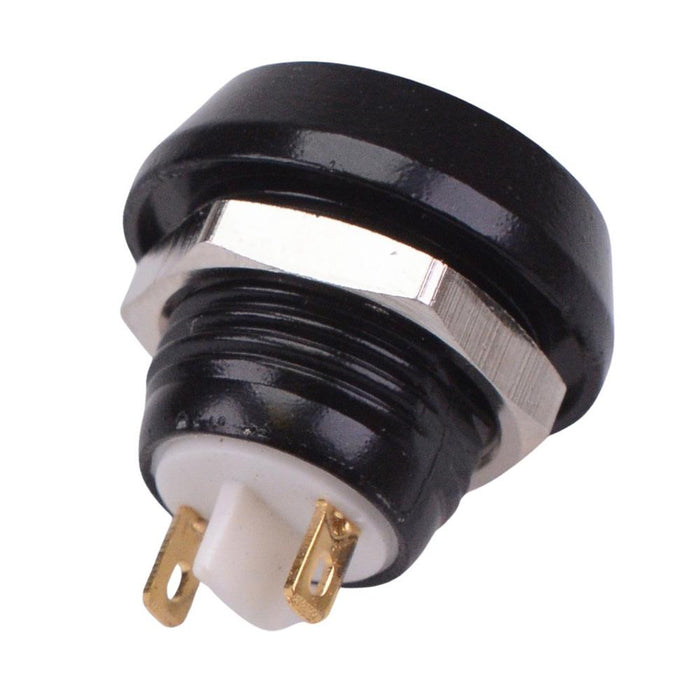

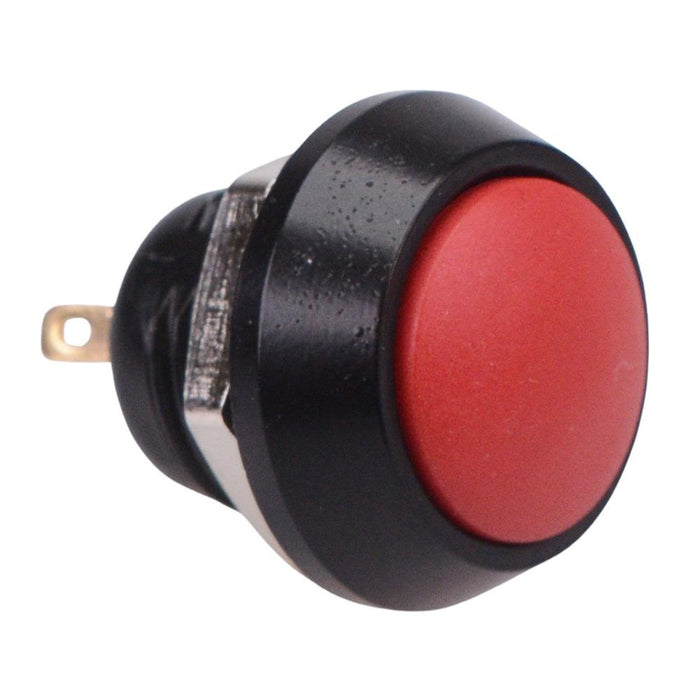

Red Button Momentary Vandal Resistant Push Switch 2A SPST
by Langir
SKU 550468
MPN: V12BP1A-R
Availability:
Only 2 left!
Original price
£2.76
-
Original price
£2.76
Original price
£2.76
Inc VAT
£2.76
-
£2.76
Current price
£2.76
Inc VAT
Vandal resistant switch featuring a round actuator offering an attractive and robust design. The switch features a IP65 sealed construction and NO contact suitable for a wide variety of applications.
Momentary action SPST contacts Zinc alloy body material 12mm panel cut-out 2A 48VDC rating Solder terminals 1,000,000 mechanical cycles
Specification
| Actuation | Momentary |
| Back order lead time | 45 Days |
| Colour | Red |
| Contact configuration | SPST |
| Contact rating | 2A 48VDC |
| Current rating | 2A |
| Electrical life | 200,000 Cycles |
| Illuminated | No |
| Illumination colour | Non Illuminated |
| Material | Zinc Alloy |
| Mounting style | Panel |
| Number of positions | 2 |
| Operating temperature | -20°C to +55°C |
| Panel cut out | 12mm |
| Protection level | IP65 |
| Switch operation | Off-(On) |
| Terminal type | Solder |
| Voltage rating | 48VDC |
