Red Off-(On) Black Momentary Vandal Resistant Push Button Switch 2A SPST
by Langir
SKU 485889
MPN: V12BP1A-R
Availability:
34 in stock
Original price
£2.88
-
Original price
£2.88
Original price
£2.88
£2.88
-
£2.88
Current price
£2.88

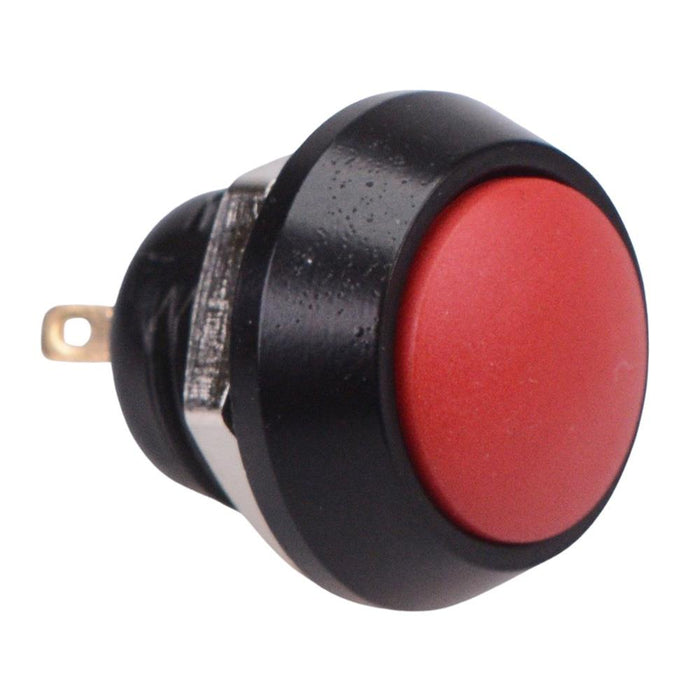

Red vandal resistant push button switch featuring a round actuator and robust zinc alloy body. The switch features an IP65 sealed construction and normally open SPST contacts suitable for a wide variety of applications.
Momentary Off-(On) action SPST contacts Zinc alloy body material 12mm panel cut-out 2A 48VDC rating Solder terminals 1,000,000 mechanical cycles Dimensions: 19.3 x 17.5mm (height x diameter)
Specification
Actuation | Momentary |
Back Order Lead Time | 45 Days |
Colour | Red |
Contact Configuration | SPST |
Contact Rating | 2A 48VDC |
Current Rating | 2A |
Electrical Life | 200,000 Cycles |
Illuminated | No |
Illumination Colour | Non Illuminated |
Material | Zinc Alloy |
Mounting Style | Panel |
Number of Poles | 1 |
Number of Positions | 2 |
Operating Force | 5N |
Operating Temperature | -20°C to +55°C |
Panel Cut Out | 12mm |
Panel Thickness | 6mm Max |
Protection Level | IP65 |
Switch Operation | Off-(On) |
Terminal Type | Solder |
Voltage Rating | 48VDC |
