Red / Blue 5mm Bicolour Multi-Voltage (3-15V) LED Kit - Box of 50

SKU 486695

MPN: OKLEDT5050RBW

Availability:
Out of stock
Sold out
Original price £14.68 - Original price £14.68
Original price
£14.68 Inc VAT
£14.68 - £14.68
Current price £14.68 Inc VAT

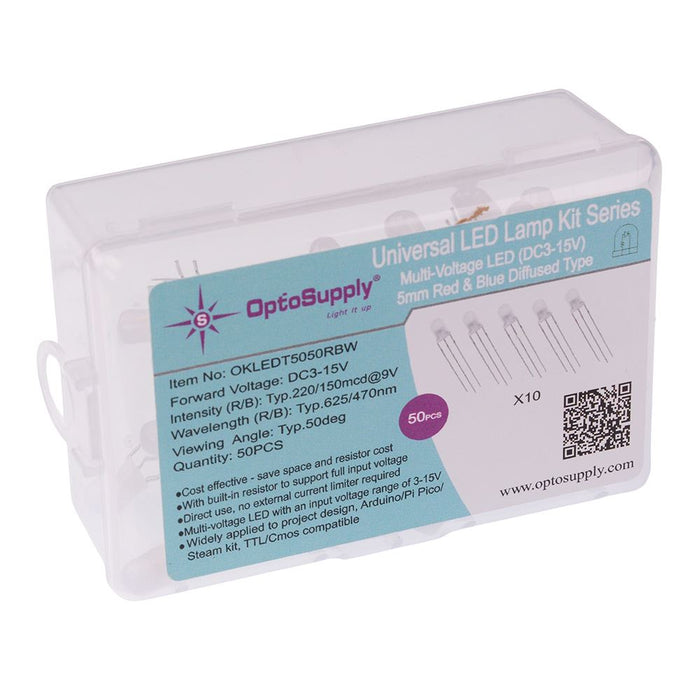

Red & Blue bicolour 5mm universal LED lamps featuring a white diffused lens complete in a handy box. The LEDs feature a built-in resistor allowing them to be used with a 3-15V input voltage range, not only does this save on cost but also space and time by not having to install an additional resistor. The LEDs are widely used for indication applications and with microcontrollers including Arduino, Raspberry Pi etc.

  • Box of 50 LEDs
  • White diffused lens
  • 5mm package with 2.54mm lead pitch
  • Input voltage: 3-15VDC
  • Built-in resistor
  • Viewing angle: 50deg
  • Wavelength: red 625nm, blue 470nm
  • Luminous intensity: red 220mcd, blue 150mcd @ 9V
  • Specification
    Back order lead time 45 Days
    Colour Red / Blue
    Diameter 5mm
    Forward current Red 7.5mA, Blue 8mA
    Forward voltage 3-15V
    Lens colour White
    Lens shape Round
    Luminous intensity Red 220mcd, Blue 150mcd
    Mode Constant
    Mounting style Through Hole
    Number of pins 3
    Operating temperature -30°C to 85°C
    Package 5mm
    Packaging Box
    Viewing angle 50°
    Wavelength Red 625nm, Blue 470nm
