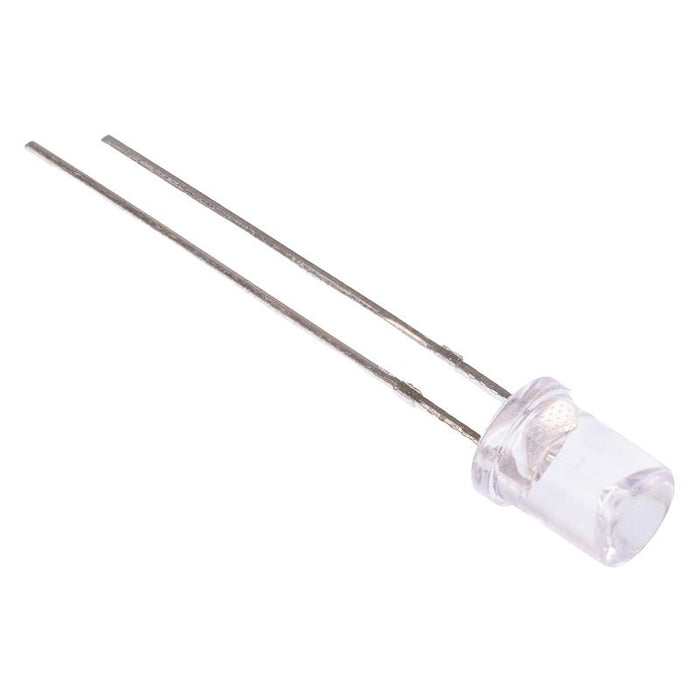

Red 5mm Concave Water Clear LED 70mcd 120°
by Luckylight
SKU 484951
MPN: LL-503VC2K-V1-1A
Availability:
470 in stock
Original price
£0.14
-
Original price
£0.14
Original price
£0.14
Inc VAT
£0.14
-
£0.14
Current price
£0.14
Inc VAT
Red 5mm concave LED featuring a water clear package and 70mcd luminous intensity suitable for applications including use as indicators, backlighting and illumination.
Luminous intensity: 70mcd Wavelength: 624nm Viewing angle: 120° Forward voltage: 2.0V Forward current: 25mA Suitable for through-hole mounting Cathode identified as the shorter lead 2.54mm lead pitch Water clear lens Excellent weather resistance Long lifespan
Specification
| Back order lead time | 5 Days |
| Colour | Red |
| Diameter | 5mm |
| Forward current | 25mA |
| Forward voltage | 2.0V |
| Lens colour | Clear |
| Lens shape | Concave |
| Luminous intensity | 70mcd |
| Mode | Constant |
| Moq | 5 |
| Mounting style | Through Hole |
| Number of pins | 2 |
| Operating temperature | -40°C to +85°C |
| Package | 5mm |
| Packaging | Bulk |
| Power dissipation | 65mW |
| Viewing angle | 120° |
| Wavelength | 624nm |
