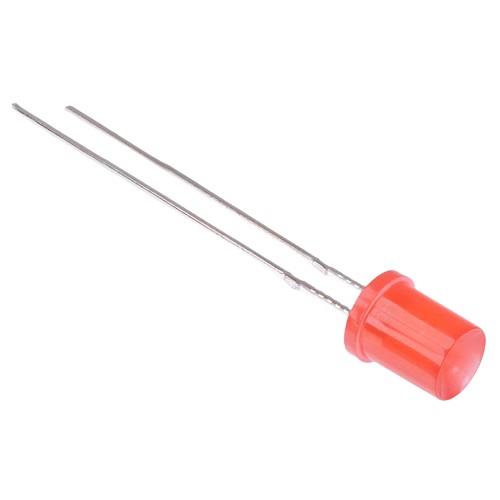

Red 5mm Concave Diffused LED 50mcd 140°

SKU 484950

MPN: LL-503VD2K-V1-1A

Availability:
390 in stock
Original price £0.14 - Original price £0.14
Original price
£0.14 Inc VAT
£0.14 - £0.14
Current price £0.14 Inc VAT
Red 5mm concave LED featuring a colour diffused package and 50mcd luminous intensity suitable for applications including use as indicators, backlighting and illumination.

  • Luminous intensity: 50mcd
  • Wavelength: 624nm
  • Viewing angle: 140°
  • Forward voltage: 2.0V
  • Forward current: 25mA
  • Suitable for through-hole mounting
  • Cathode identified as the shorter lead
  • 2.54mm lead pitch
  • Colour diffused lens
  • Excellent weather resistance
  • Long lifespan
  • Specification
    Back order lead time 5 Days
    Colour Red
    Diameter 5mm
    Forward current 25mA
    Forward voltage 2.0V
    Lens colour Red
    Lens shape Concave
    Luminous intensity 50mcd
    Mode Constant
    Moq 5
    Mounting style Through Hole
    Number of pins 2
    Operating temperature -40°C to +85°C
    Package 5mm
    Packaging Bulk
    Power dissipation 62mW
    Viewing angle 140°
    Wavelength 624nm
