Red 3mm Concave Diffused LED 150mcd 120°
by OptoSupply
SKU 484942
MPN: OSR5JA3PC4A
Availability:
995 in stock
Original price
£0.17
-
Original price
£0.17
Original price
£0.17
Inc VAT
£0.17
-
£0.17
Current price
£0.17
Inc VAT

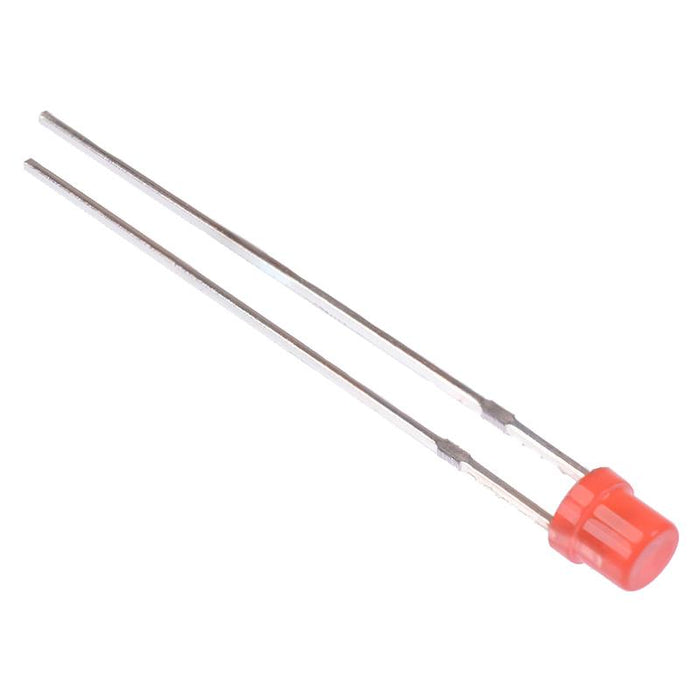

Red 3mm concave LED featuring a colour diffused package and 150mcd luminous intensity suitable for applications including use as indicators, backlighting and illumination.
Luminous intensity: 150mcd Wavelength: 625nm Viewing angle: 120° Forward voltage: 2.1V Forward current: 30mA Suitable for through-hole mounting Cathode identified as the shorter lead 2.54mm lead pitch Colour diffused lens Excellent weather resistance Long lifespan
Specification
| Back order lead time | 5 Days |
| Colour | Yellow |
| Diameter | 3mm |
| Forward current | 30mA |
| Forward voltage | 2.1V |
| Lens colour | Red |
| Lens shape | Concave |
| Luminous intensity | 150mcd |
| Mode | Constant |
| Moq | 5 |
| Mounting style | Through Hole |
| Number of pins | 2 |
| Operating temperature | -30°C to +85°C |
| Package | 3mm |
| Packaging | Bulk |
| Power dissipation | 78mW |
| Viewing angle | 120° |
| Wavelength | 625nm |
