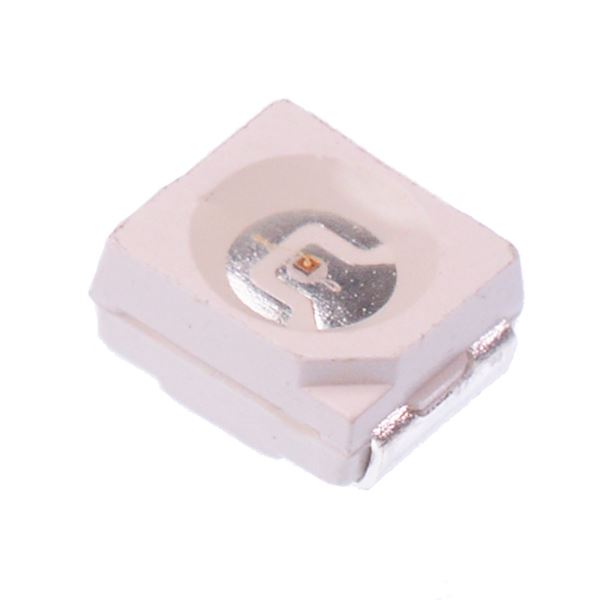

Red 3528 PLCC-2 SMD Water Clear LED 600mcd 120°
by Luckylight
SKU 484859
MPN: R3528VC-3C
Availability:
4309 in stock
Original price
£0.11
-
Original price
£0.11
Original price
£0.11
Inc VAT
£0.11
-
£0.11
Current price
£0.11
Inc VAT
Red surface mount LED housed in a 3528 package with 600mcd luminous intensity suitable for a wide range of applications including automotive, backlighting and indication.
3528 PLCC-2 package Luminous intensity: 600mcd 120° viewing angle Wavelength: 624nm Forward voltage: 2.0V Forward current: 25mA Water clear lens UV resistant Supplied on tape packaging Dimensions: 3.5 x 2.8 x 1.9mm
Specification
| Back order lead time | 40 Days |
| Colour | Red |
| Forward current | 20mA |
| Forward voltage | 2.0V |
| Height | 1.9mm |
| Length | 3.5mm |
| Lens colour | Clear |
| Luminous intensity | 600mcd |
| Moq | 10 |
| Mounting style | Surface Mount |
| Number of pins | 2 |
| Operating temperature | -40°C to +80°C |
| Package | 3528 |
| Packaging | Cut Tape |
| Power dissipation | 60mW |
| Viewing angle | 120° |
| Wavelength | 624nm |
| Width | 2.8mm |
