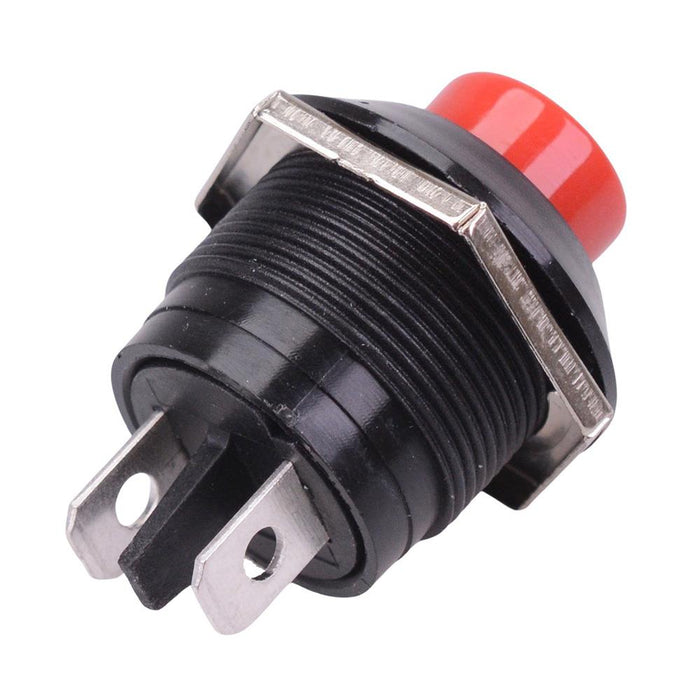

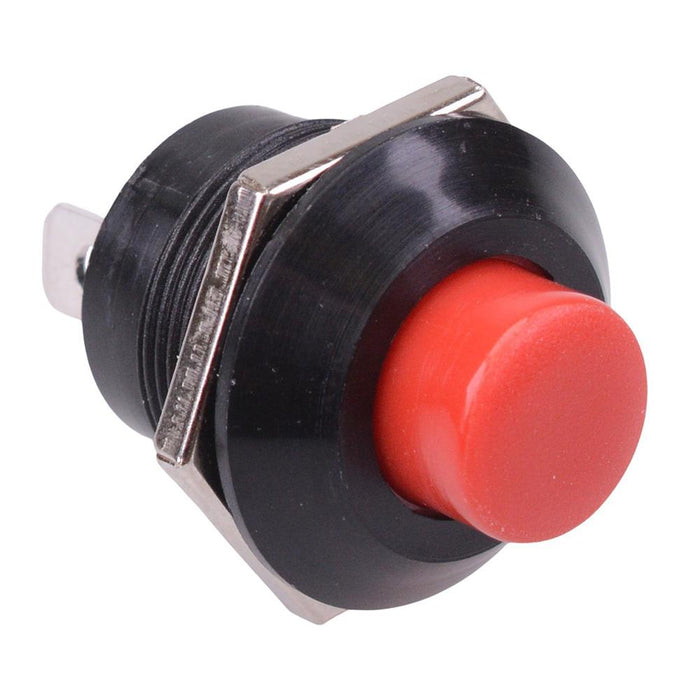

Red 22mm Momentary Starter Push Button Switch 10A 12VDC A2-6AS-BR
by SCI
SKU 491425
MPN: A2-6AS-BR
Availability:
19 in stock
Original price
£1.98
-
Original price
£1.98
Original price
£1.98
£1.98
-
£1.98
Current price
£1.98
The A2-6AS-BR is a starter push button switch featuring quick connect terminals and 22.2mm panel cut-out. The switch features a red actuator and is suitable for 12V and 24V automotive applications including cars, bikes, trucks etc.
Off-(On) action SPST contacts 6.3mm quick connect terminals Panel cut-out diameter: 22.2mm Rating: 10A 24VDC Maximum panel thickness: 6mm Dimensions: 38.4 x 27.8mm (height x diameter)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 150 Days |
| Colour | Black |
| Contact Configuration | SPST |
| Contact Rating | 10A 12VDC |
| Current Rating | 10A |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Panel Cut Out | 22.2mm |
| Panel Thickness | 6mm Max |
| Protection Level | IP40 |
| Switch Operation | Off-(On) |
| Terminal Type | Quick Connect |
| Voltage Rating | 12VDC |
