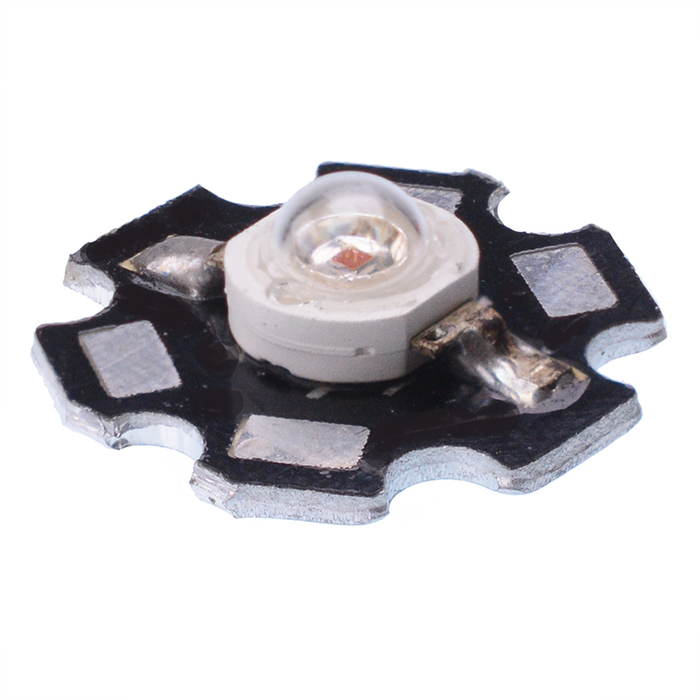

Red 1W Star High Power LED 45lm 135°
by Luckylight
SKU 490468
MPN: HP60NVD
Availability:
451 in stock
Original price
£0.74
-
Original price
£0.74
Original price
£0.74
£0.74
£0.74
-
£0.74
Current price
£0.74
Red high power 1W LEDs featuring a high luminous flux, mounted to a heatsink for dissipating heat. The LEDs feature a low profile design with a small package suitable for a range of applications including backlighting, general illumination and indication.
Luminous flux: 45lm Wavelength: 624nm Viewing angle: 135° Forward voltage: 2.2V Forward current: 350mA, 500mA peak Excellent weather resistance Long lifespan Width: 19.9mm (across flats) Height: 6.65mm
Specification
| Back Order Lead Time | 40 Days |
| Colour | Red |
| Forward Current | 350mA |
| Forward Voltage | 2.2V |
| Lens Colour | Clear |
| Lens Shape | Dome |
| Luminous Flux | 45lm |
| Luminous Intensity | 45lm |
| MOQ | 1 |
| Mounting Style | Surface Mount |
| Number of Pins | 2 |
| Operating Temperature | -40°C to 85°C |
| Package | PCB Substrate |
| Packaging | Bulk |
| Power Dissipation | 910mW |
| Power Rating | 1W |
| Viewing Angle | 135° |
| Wavelength | 624nm |
