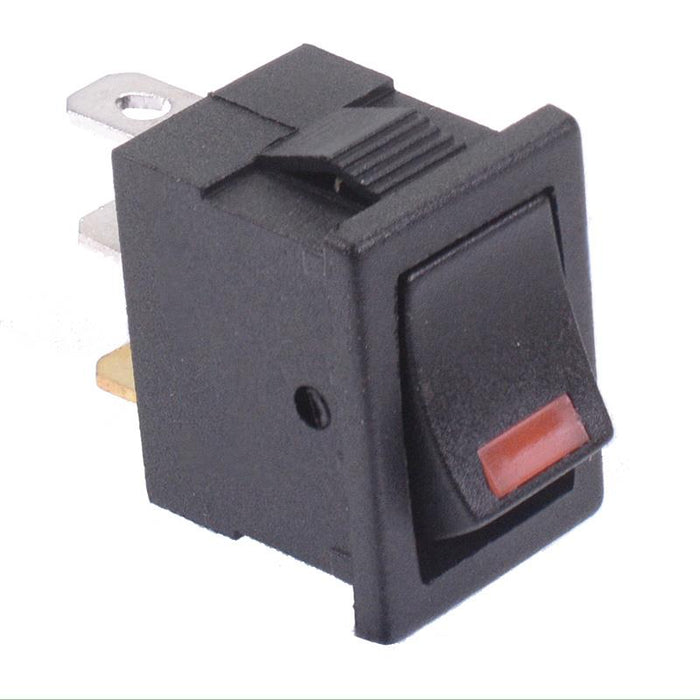

Red 12V illuminated Rectangle Rocker Switch SPST 15A
SKU 483259
MPN: 483259
Availability:
131 in stock
Original price
£0.91
-
Original price
£0.91
Original price
£0.91
Inc VAT
£0.91
-
£0.91
Current price
£0.91
Inc VAT
Red LED rectangle rocker switch featuring SPST contacts and on-off action. The switch is designed for snap-in mounting and is suitable for a wide range of 12V applications.
On-off action SPST contacts 12V illumination 4.8mm quick connect terminals Panel cut-out: 19.2 x 13mm Dimensions: 25 x 21 x 15mm (Height x Length x Width) Maximum current: 6A Maximum voltage: 250VAC
Specification
| Actuation | Latching |
| Back order lead time | 45 Days |
| Colour | Red |
| Contact configuration | SPST |
| Contact rating | 15A 12VDC |
| Current rating | 15A |
| Electrical life | 10,000 Cycles |
| Illuminated | Yes |
| Illumination colour | Red |
| Illumination voltage | 12VDC |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -25°C to +85°C |
| Panel cut out | 19.2 x 13mm |
| Switch operation | On-Off |
| Terminal type | Quick Connect |
| Voltage rating | 12VDC |
