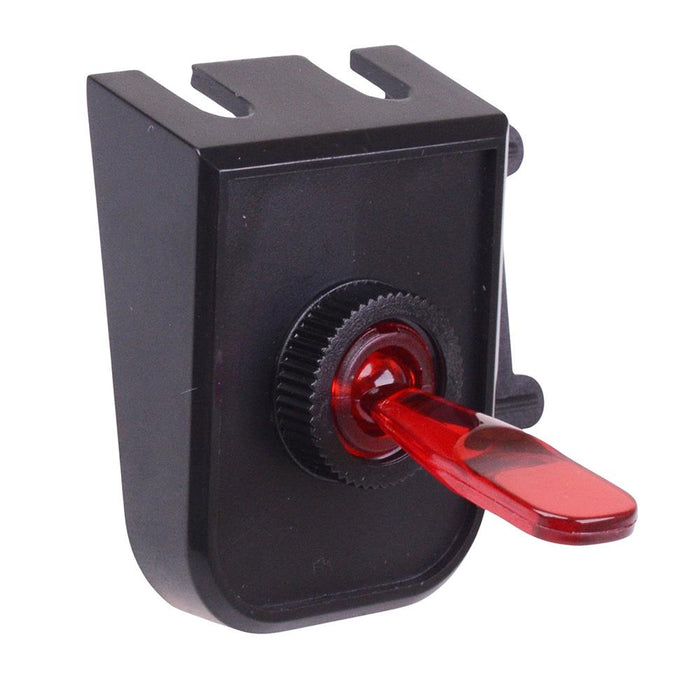

Red 12V illuminated On-Off 12mm Toggle Switch with Panel SPST 20A
by SCI
SKU 490832
MPN: PR18-B4-61B
Availability:
500 in stock
Original price
£1.74
-
Original price
£1.74
Original price
£1.74
£1.83
£1.83
-
£1.83
Current price
£1.83

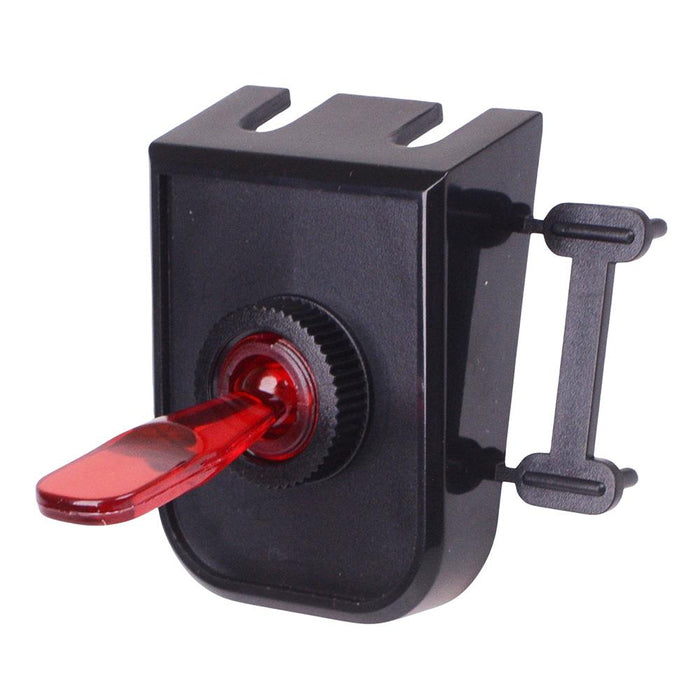

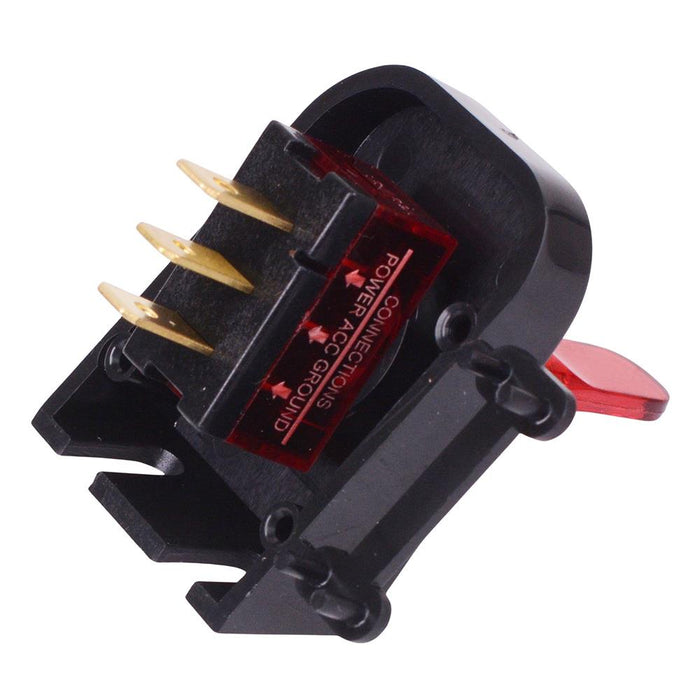

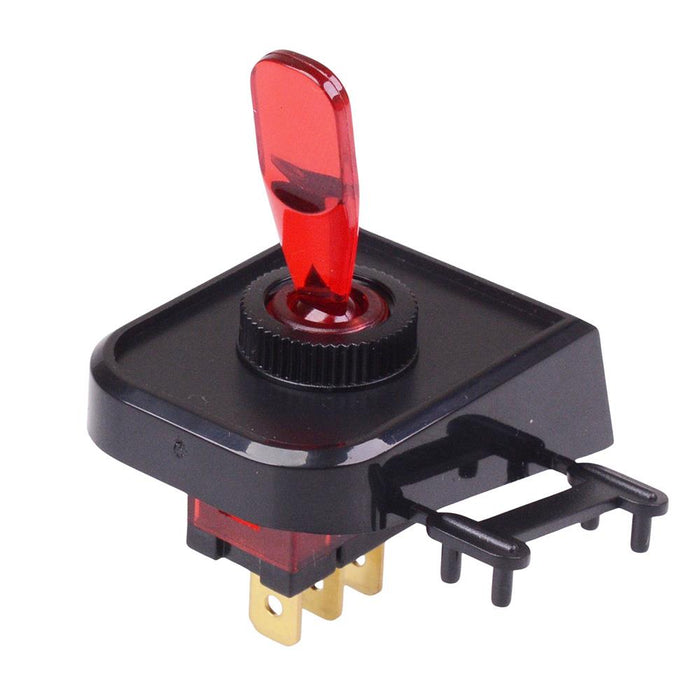

Red illuminated On/Off toggle switch featuring 12V neon illumination and quick connect terminals. The toggle switch comes complete with mounting panel and is rated up to 20A, suitable for a wide range of automotive applications.
Function: On/Off Contacts: SPST Panel cut-out: 12.2mm Rating: 20A 12VDC 6.3mm quick connect terminals Red 12V illumination Panel dimensions: 43.5 x 45mm (height x width)
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 Days |
| Contact Configuration | SPST |
| Contact Rating | 20A 12VDC |
| Current Rating | 20A |
| Illuminated | Yes |
| Illumination Voltage | 12VDC |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Panel Cut Out | 12.2mm |
| Panel Thickness | 2mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 12VDC |
