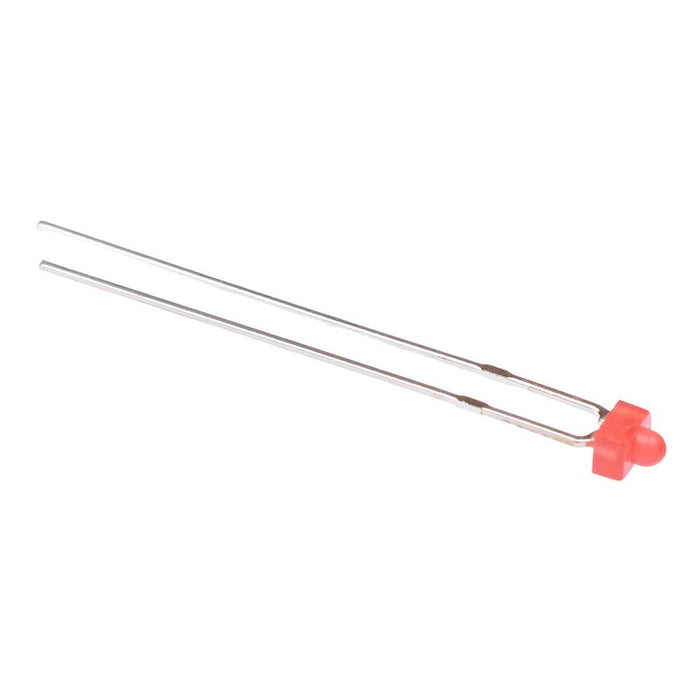

Red 1.8mm LED Diffused 600mcd 60°
by Luckylight
SKU 490456
MPN: 204VD2A-1B
Availability:
2935 in stock
Original price
£0.16
-
Original price
£0.16
Original price
£0.16
£0.16
£0.16
-
£0.16
Current price
£0.16
Red 1.8mm LED featuring a colour diffused lens and 600mcd luminous intensity suitable for applications including use as indicators, backlighting and general illumination.
Luminous intensity: 600mcd Wavelength: 624nm Viewing angle: 60° Forward voltage: 2.0V Forward current: 25mA Suitable for through-hole mounting Cathode identified as the shorter lead 2.54mm lead pitch Red diffused lens Excellent weather resistance Long lifespan
Specification
| Back Order Lead Time | 40 Days |
| Colour | Red |
| Diameter | 1.8mm |
| Forward Current | 25mA |
| Forward Voltage | 2.0V |
| Lens Colour | Red |
| Lens Shape | Round |
| Luminous Intensity | 600mcd |
| Mode | Constant |
| MOQ | 5 |
| Mounting Style | Through Hole |
| Number of Pins | 2 |
| Operating Temperature | -40°C to 80°C |
| Package | 1.8mm |
| Packaging | Bulk |
| Power Dissipation | 60mW |
| Viewing Angle | 60° |
| Wavelength | 624nm |
