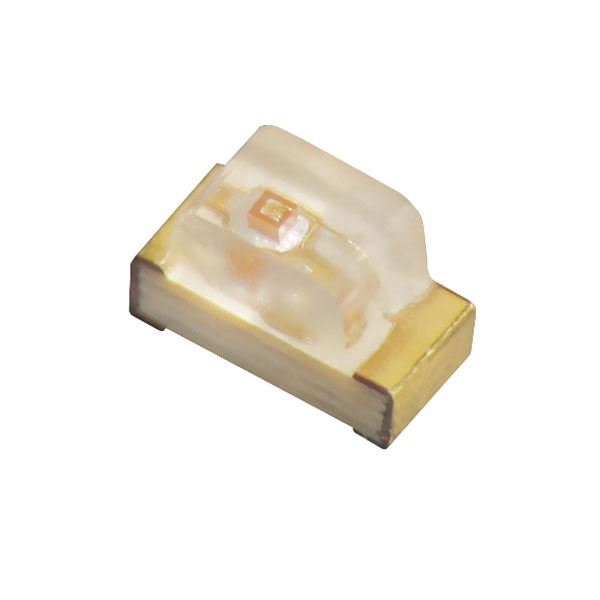

Red 0603 SMD LED 150mcd 120°

SKU 311493

MPN: TY-Y0603UR1

Availability:
3710 in stock
Original price £0.12 - Original price £0.12
Original price
£0.12 Inc VAT
£0.12 - £0.12
Current price £0.12 Inc VAT
High brightness surface mount LEDs housed in industry standard 0603 package featuring a single chip. The LEDs offer a wide viewing angle and are suitable for a range of backlighting and other lighting applications.

  • Package: 1.6 x 0.8 x 0.6mm
  • High brightness
  • Water clear package
  • Wide viewing angle
  • Low power consumption
  • Specification
    Back order lead time 45 Days
    Colour Red
    Forward current 30mA
    Forward voltage 1.9V
    Height 0.6mm
    Length 1.6mm
    Lens colour Clear
    Luminous intensity 150mcd
    Moq 10
    Mounting style Surface Mount
    Number of pins 2
    Operating temperature -40°C to +85°C
    Package 0603
    Packaging Cut-Tape
    Power dissipation 75mW
    Viewing angle 120°
    Wavelength 617nm
    Width 0.8mm
    Request a quote
