Rectangular Reed Switch SPST-NO 500mA 400V - PRA-SA-001, S1747

by Comus
SKU 552613

MPN: S1747

Availability:
30 in stock
Original price £8.28 - Original price £8.28
Original price
£8.28
£8.28 - £8.28
Current price £8.28

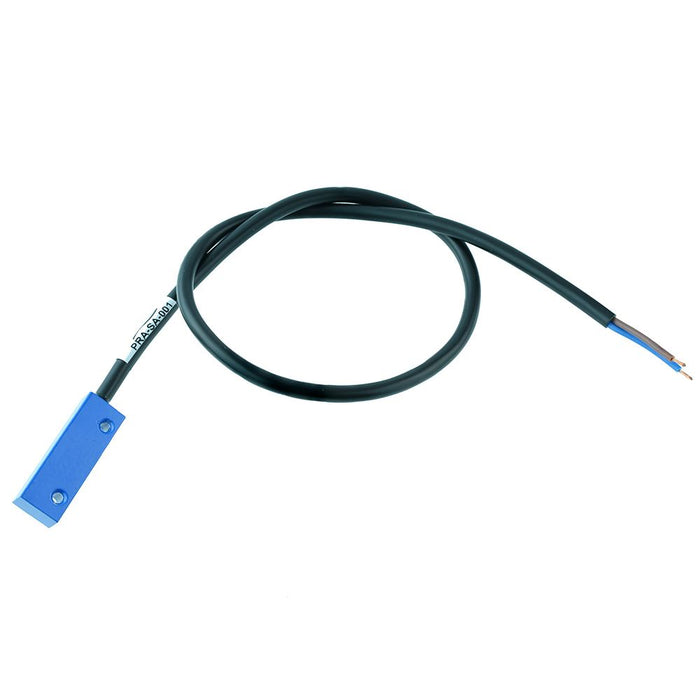

The PRA-SA-001 is a rectangular reed switch featuring normally open contacts, housed in a blue powder coated aluminium case. The proximity switch is suitable for industrial and commercial applications including position and limit sensing sensing, linear actuators, security system switch and door switch.

  • Suggested magnet: PRM-SA-001
  • Left handed entry
  • Normally open contacts
  • Blue powder coated aluminium case
  • Maximum switching voltage: 400VAC
  • Maximum switching current: 0.5A
  • Maximum switching capacity: 10W/VA
  • 2 x Round 0.5mm² PVC insulated Brown / Blue cable
  • Specification
    Back Order Lead Time 180 Days
    Carry Current 1A
    Contact Configuration SPST-NO
    Material Blue Powder Coated Aluminium
    Maximum Switching Capacity 10W/VA
    Maximum Switching Current 0.5A
    Maximum Switching Voltage 400VAC/DC
    Operating Temperature -20°C to +85°C
