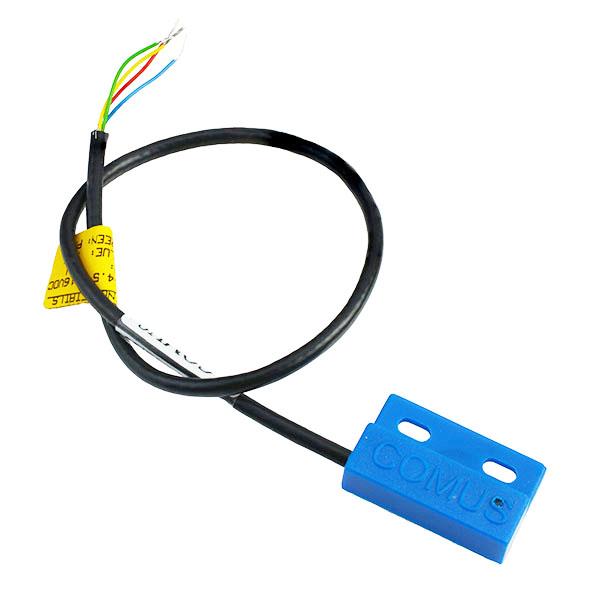

Rectangular Reed Switch SPNO 250mA - S1431

The S1431 is a rectangular reed switch featuring normally open contacts, LED indicator, PNP and NPN outputs. The switch is fully sealed to give maximum mechanical protection and minimise the ingress of dust and moisture.

Features fixing slots

Polystyrene case

Supply voltage: 10-20VDC

ON current: 25mA

Output type: open collector

Output current: 250mA

Minimum operating distance: 8mm

4 x round 7/0.2 PVC screened and insulated

Note: When power is applied the red indication LED will glow dimly to indicate power is at the device. When a magnet is present i.e. on target the LED will illuminate at full brightness.
