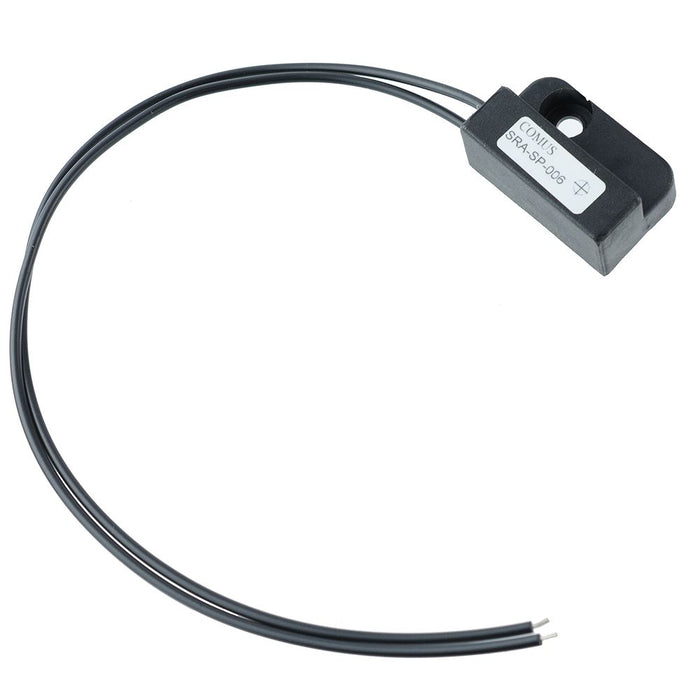

Rectangular Reed Switch NO 0.5A 200V - SRA-SP-006, S1980C

by Comus
SKU 552625

MPN: S1980C

Availability:
9 in stock
Original price £15.63 - Original price £15.63
Original price
£15.63 Inc VAT
£15.63 - £15.63
Current price £15.63 Inc VAT
The SRA-SP-006 is a non powered rectangular sensor capable of detecting ferrous metals. Suitable for applications including gate closed detection, robotics sensing, automated production lines and safety guards.

  • Normally open contacts
  • Top or side sensing directions
  • Activation distance: 6mm
  • Maximum switching voltage: 140VAC / 200VDC
  • Maximum switching current: 0.5A
  • Maximum switching capacity: 10W
  • 2 x 20AWG Black cable
  • Specification
    Back order lead time 180 Days
    Carry current 2.75A
    Contact configuration SPST-NO
    Material ABS
    Maximum switching capacity 10W
    Maximum switching current 0.5A
    Maximum switching voltage 140VAC, 200VDC
    Operating temperature -40°C to +85°C
    Request a quote
