Rectangular Reed Switch Changeover 500mA 100V - PSC 175/30

by Comus
SKU 552597

MPN: S1515

Availability:
64 in stock
Original price £6.51 - Original price £6.51
Original price
£6.51
£6.51 - £6.51
Current price £6.51

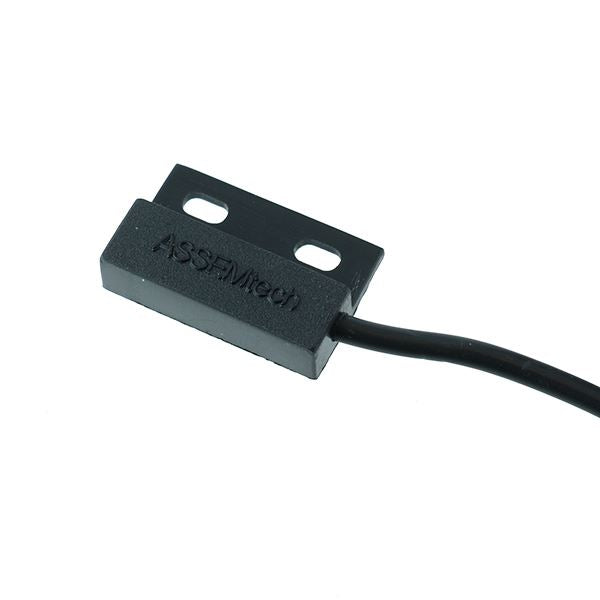

The PSC 175/30 is a prewired rectangular reed switch featuring normally closed contacts, moulded from black Nylon 66. The switch is suitable for applications including position and limit sensing, linear actuators, security system switch and door switch.

  • Suggested magnet: PSM (black)
  • Changeover contacts
  • Fixing slots
  • Maximum switching voltage: 100VAC
  • Maximum switching current: 0.5A
  • Maximum switching capacity: 5W/VA
  • Switching distance: 8mm min
  • 3 x 0.14mm² PVC covered and insulated
  • Specification
    Back Order Lead Time 180 Days
    Carry Current 1A
    Contact Configuration SPDT
    Material Nickel Plated Brass
    Maximum Switching Capacity 5W/VA
    Maximum Switching Current 0.5A
    Maximum Switching Voltage 100VAC
    Operating Temperature -20°C to +85°C
