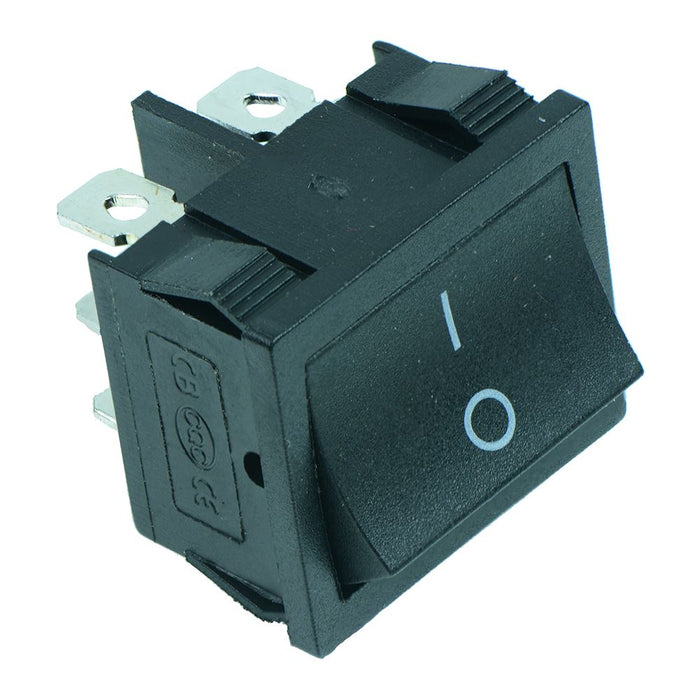

Rectangular On-On Rocker Switch DPDT 10A
SKU 130039
MPN: 130039
Availability:
252 in stock
Original price
£0.81
-
Original price
£0.81
Original price
£0.81
Inc VAT
£0.81
-
£0.81
Current price
£0.81
Inc VAT
Rectangular DPDT rocker switch with quick-connect terminals and a reliable mechanism, suitable for repairing electrical appliances at a low cost.
On-On DPDT contacts Rating: 6(4)A 250VAC / 10A 125VAC 4.8 x 0.8mm terminals Panel cut-out: 22 x 19.5mm Dimensions: 24 x 21 x 18.3mm (Width x Length x Height)
Specification
| Actuation | Latching |
| Back order lead time | 40 Days |
| Contact configuration | DPDT |
| Contact rating | 6A 250VAC, 10A 125VAC |
| Current rating | 10A |
| Electrical life | 10,000 Cycles |
| Illuminated | No |
| Material | PA66 |
| Mounting style | Panel |
| Number of poles | 2 |
| Number of positions | 2 |
| Operating temperature | -20°C to +55°C |
| Panel cut out | 22 x 19.5mm |
| Switch operation | On-On |
| Terminal type | Quick Connect |
| Voltage rating | 250VAC |
