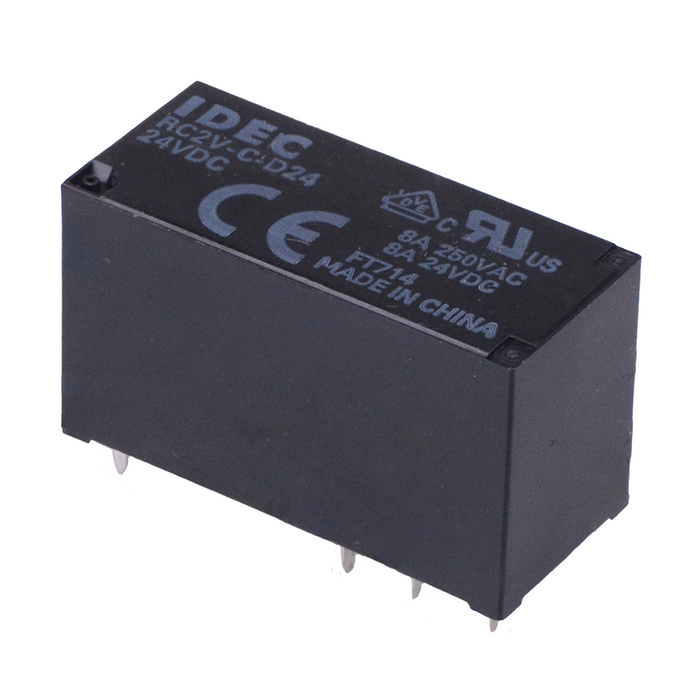

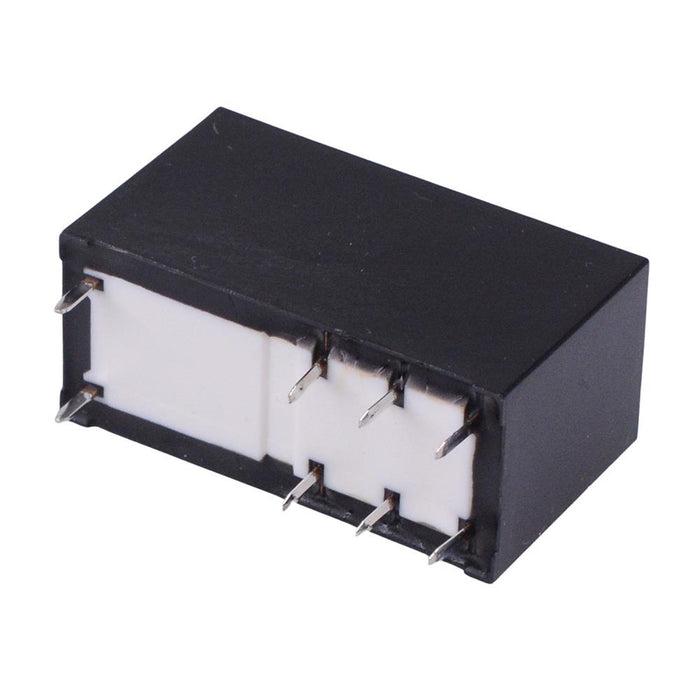

RC2V-C-D24 24VDC Low Profile PCB Relay 8A DPDT
by IDEC
SKU 493244
MPN: RC2V-C-D24
Availability:
20 in stock
Original price
£3.43
-
Original price
£3.43
Original price
£3.43
£3.43
-
£3.43
Current price
£3.43
The RC2V-C-D24 is a high capacity PCB relay, with a compact and low profile design. The relay features a 24V coil voltage and DPDT contacts, suitable for through hole mounting.
Coil voltage: 24VDC Contact arrangement: DPDT Current rating: 8A Dimensions: 29 x 12.8 x 16.5mm (length x width x height)
Specification
| Ambient Temperature | -40°C to +85°C |
| Back Order Lead Time | 256 Days |
| Coil Resistance | 1100Ω |
| Coil Voltage | 24VDC |
| Contact Arrangement | DPDT |
| Electrical Life | 5,000,000+ Cycles |
| Maximum Switching Current | 8A |
| Mechanical Life | 20,000,000+ Cycles |
| MOQ | 1 |
| Mounting Type | PCB |
| Number of Contacts | 8 |
| Power Consumption | 530mW |
| Rated Load | 8A 250VAC / 24VDC |
| Terminal Type | Through Hole |
